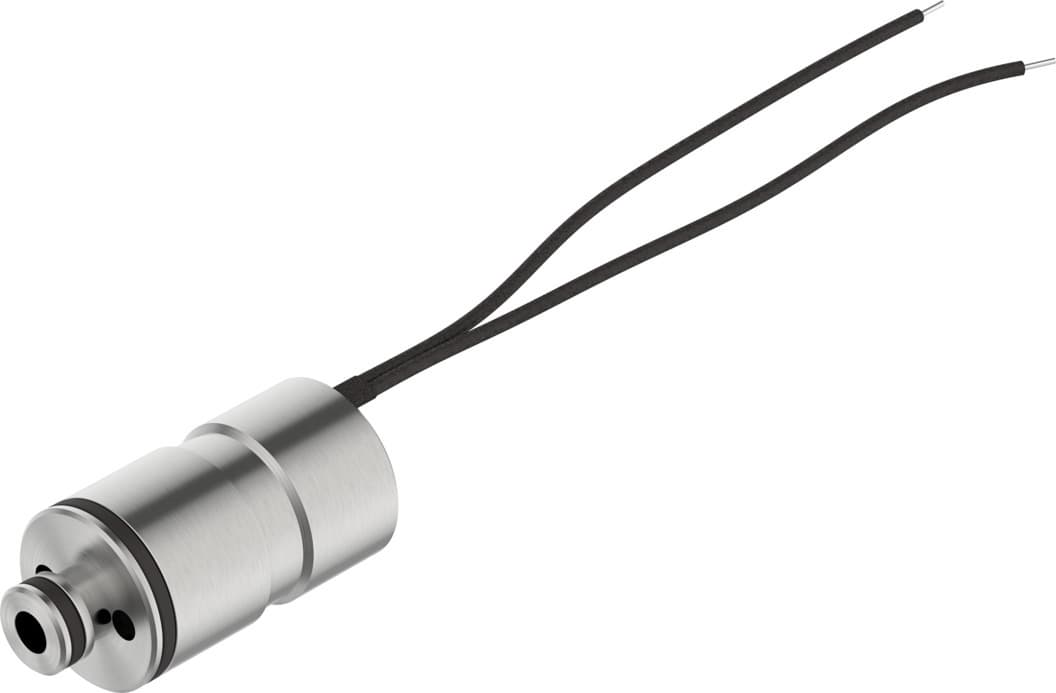

vpws-2.2-b-6-pc15-3-v
Product ID:16271
Updated: 2026/4/3
Key Features
- 1Deliver high-precision flow control from 46 to 56 liters per minute. 2、Ensure reliable operation with electric actuation and 18 Hz frequency. 3、Minimize leakage using the soft sealing principle for longevity. 4、Simplify integration with versatile sub-base and plug-in mounting. 5、Resist corrosion with a high-alloy steel housing and FPM seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2.2mm | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Any |
| Structural design | Directly controlled poppet valve | Reset method | Mechanical spring |
| Type of control | Direct | Flow direction | Non-reversible |
| Symbol | 00995954 | Valve function | 2/2 proportional directional control valve, closed |
| Operating pressure | 0bar 3bar | Nominal operating pressure | 43.5psi |
| Burst pressure | 435psi | Standard flow rate | 46l/min 56l/min |
| Hysteresis | 16mA | Max. switching frequency | 18Hz |
| Current regulating range | 0mA 200mA | Max. electrical power consumption | 2.5W |
| Coil resistance | 60.5Ohm | Duty cycle | 100 % (siehe Betriebsanleitung) |
| Oxygen suitability according to standard | ISO 15001 | Impurity level, hydrocarbons maximum | 550mg/m2 |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Note on vibration resistance | Schwingung in Z-Richtung kann zu Durchflussschwankung führen |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 | Note on shock resistance | Schock in Z-Richtung kann zu Durchflussschwankung führen |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Medium | Inert gas Air Oxygen | Information on medium | Operation with oil lubrication not possible Maximum particle size 10 μm |
| Temperature of medium | 5°C 50°C | Degree of protection | IP60 |
| Note on degree of protection | IP65 with suitable plug In mounted state | Ambient temperature | 5°C 50°C |
| Storage temperature | -40°C 80°C | Product weight | 23g |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 | Cable length | 0.07m 0.08m |
| Type of mounting | On sub-base Plug-in With accessories | Pneumatic connection 1 | Cartridge 15 mm |
| Pneumatic connection 2 | Cartridge 7.2 mm | Note on materials | RoHS-compliant |
| Seals material | FPM | Housing material | High-alloy steel |
| Manufacturer ID | 8074074 |
Specifications may be subject to change without notice
