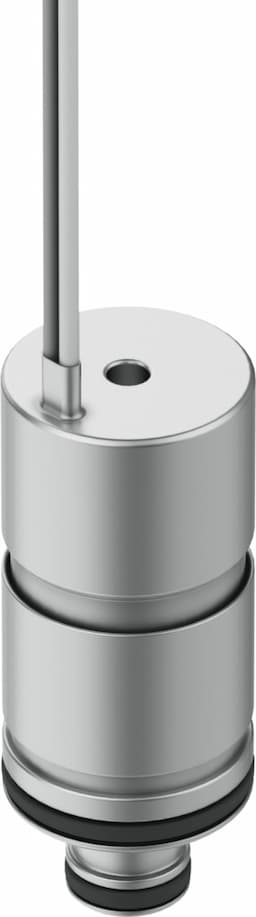

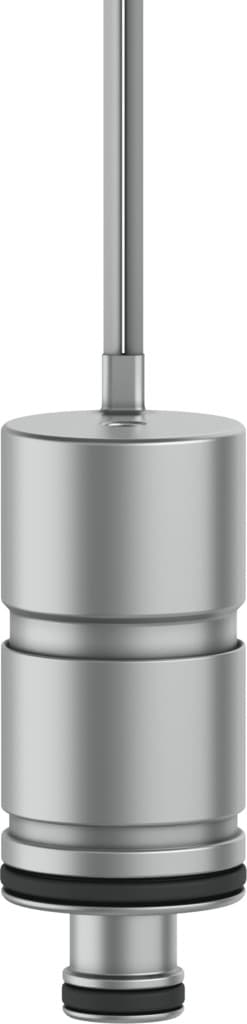

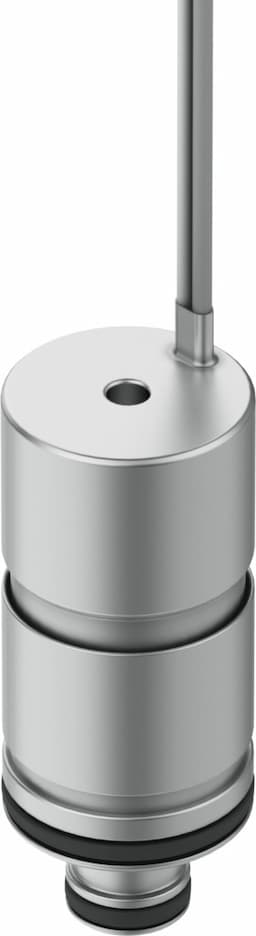

vpws-6-b-6-pc15-3-v
Product ID:16273
Updated: 2026/4/3
Key Features
- 1Control flow precisely with a standard rate of 200-220 l/min. 2、Operate reliably via electric actuation for efficient performance. 3、Minimize leakage using the soft sealing principle for durability. 4、Maintain consistent performance with a non-reversible flow direction. 5、Resist corrosion with high-alloy steel housing and FPM seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 6mm | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Any |
| Structural design | Directly controlled poppet valve | Reset method | Mechanical spring |
| Type of control | Direct | Flow direction | Non-reversible |
| Symbol | 00995953 | Valve function | 2/2 proportional directional control valve, closed |
| Operating pressure | 0bar 3bar | Nominal operating pressure | 29psi |
| Burst pressure | 217.5psi | Standard flow rate | 200l/min 220l/min |
| Hysteresis | 22.5mA | On switching time | 10ms |
| Current regulating range | 0mA 225mA | Max. electrical power consumption | 3W |
| Coil resistance | 60.5Ohm | Duty cycle | 100 % (siehe Betriebsanleitung) |
| Oxygen suitability according to standard | ISO 15001 | Impurity level, hydrocarbons maximum | 500mg/m2 |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Note on vibration resistance | Schwingung in Z-Richtung kann zu Durchflussschwankung führen |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 | Note on shock resistance | Schock in Z-Richtung kann zu Durchflussschwankung führen |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Medium | Inert gas Air Oxygen | Information on medium | Operation with oil lubrication not possible Maximum particle size 10 μm |
| Temperature of medium | 5°C 50°C | Degree of protection | IP60 |
| Note on degree of protection | IP65 with suitable plug In mounted state | Ambient temperature | 5°C 50°C |
| Storage temperature | -40°C 80°C | Product weight | 25g |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 | Cable length | 0.07m 0.08m |
| Type of mounting | On sub-base Plug-in With accessories | Pneumatic connection 1 | Cartridge 7.5 mm |
| Pneumatic connection 2 | Cartridge 15 mm | Note on materials | RoHS-compliant |
| Seals material | FPM | Housing material | High-alloy steel |
| Manufacturer ID | 8074537 |
Specifications may be subject to change without notice
