Key Features

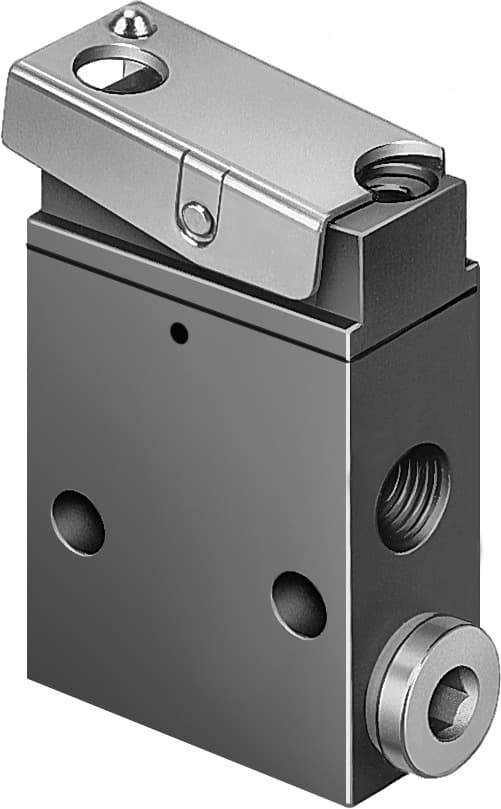

- 1Ensure precise control with the 3/2-way monostable VS-3-1/8 valve. 2、Handle up to 8 bar pressure for diverse industrial applications. 3、Rely on poppet seat design and spring return for consistent performance. 4、Enhance versatility with soft sealing and optional mounting positions. 5、Choose RoHS-compliant NBR seals for reliable, durable operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Mechanical |
| Standard nominal flow rate | 146l/min 154l/min | Pneumatic working port | G1/8 |
| Operating pressure | 3.5bar 8bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Nominal width | 3.5mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991113 | Pilot medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Note on forced dynamization | Switching frequency min. 1/year | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Actuating force | 3N | Product weight | 110g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Aluminum Anodized | Manufacturer ID | 2334 |
Specifications may be subject to change without notice
