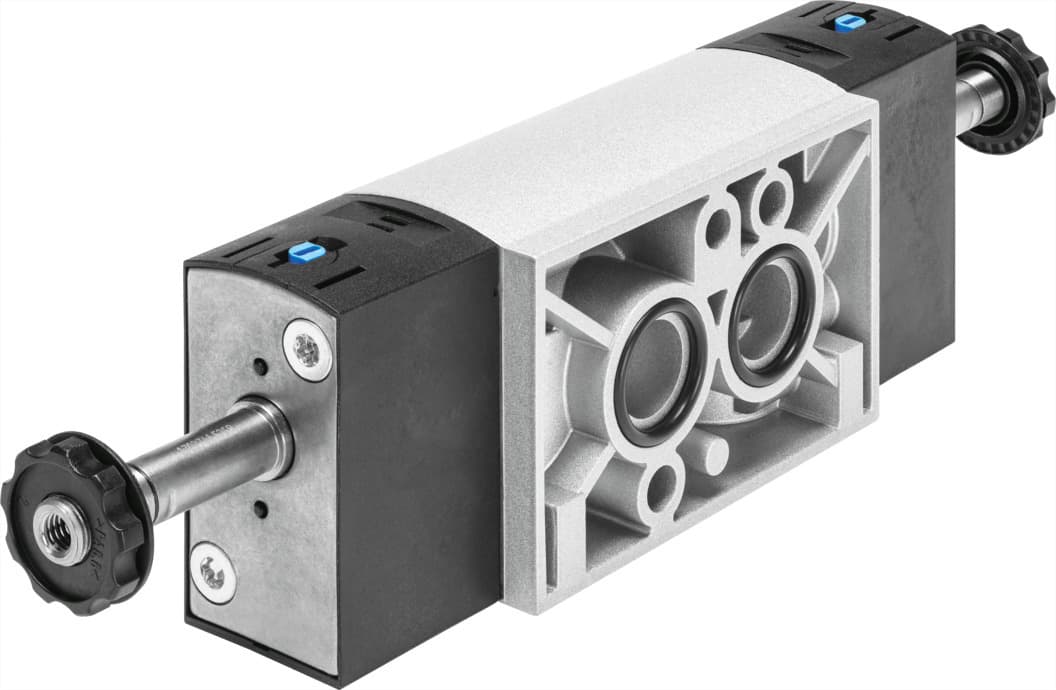

vsnc-f-b52-d-g14-f8
Product ID:14623
Updated: 2026/4/3
Key Features
- 1Achieve a high-flow rate of 1350L/min for efficient system operation. 2、Utilize electric actuation for reliable and precise directional control. 3、Ensure compliance with NAMUR standards using G1/4 ports. 4、Leverage pilot actuation for flexible and versatile control options. 5、Benefit from robust construction with a durable aluminum alloy housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 32mm | Standard nominal flow rate | 1350l/min |
| Pneumatic working port | NAMUR connection diagram | Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | 1.5bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | DNVGL-TAA000011J |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991005 | Lap | Overlap |
| Signal status display | With accessories | b-value | 0.4 |
| C value | 5.6l/sbar | Changeover time | 11ms |
| Duty cycle | 100% | Coil characteristics | See solenoid coil, to be ordered separately |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Temperature of medium | -20°C 60°C | Ambient temperature | -20°C 60°C |
| Product weight | 345g | Type of mounting | With through-hole |
| Venting hole connection | Not ducted | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | NAMUR connection diagram | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | NAMUR connection diagram | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
| Manufacturer ID | 577258 |
Specifications may be subject to change without notice
