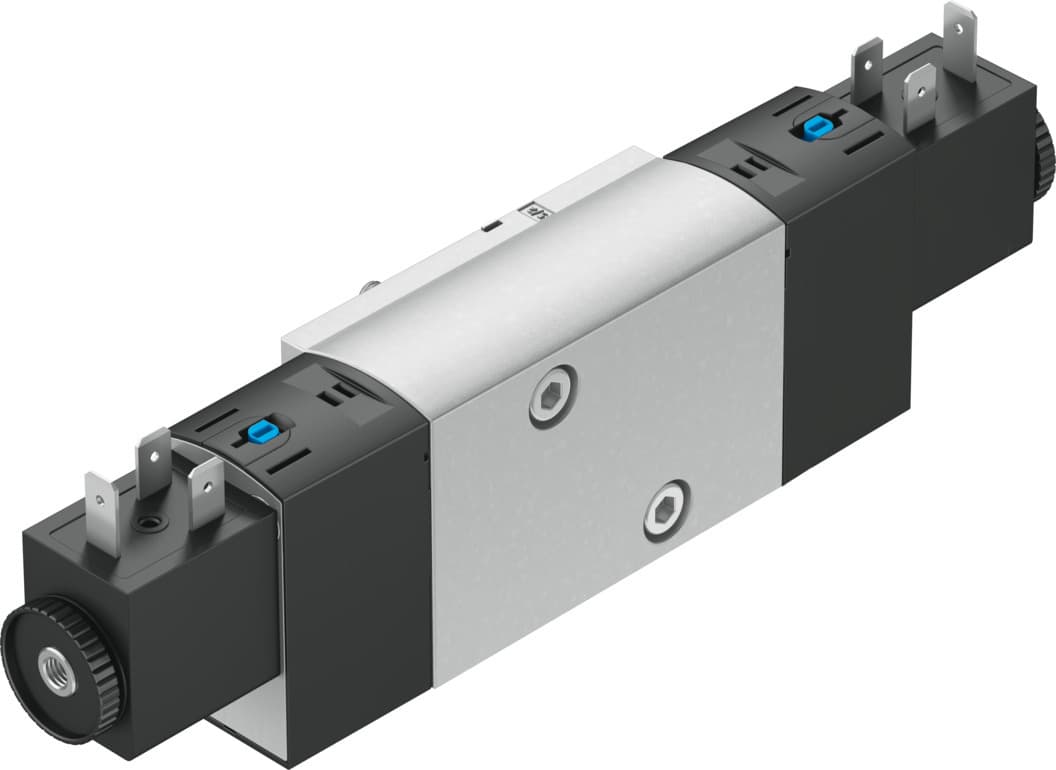

vsnc-f-b52-d-g14-f8-1b2
Product ID:14651
Updated: 2026/4/3
Key Features
- 1Control precisely with 5/2-way operation and 1350 L/min flow. 2、Ensure durability via aluminum housing and stainless steel screws. 3、Operate reliably from 1.5 to 10 bar and -20°C to 60°C. 4、Meet safety standards including ATEX and IECEx certification. 5、Reduce downtime with robust design for demanding environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 32mm | Standard nominal flow rate | 1350l/min |
| Pneumatic working port | NAMUR connection diagram | Operating voltage | 24V DC |
| Operating pressure | 1.5bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | DNVGL-TAA000011J |
| Degree of protection | IP65 IP67 With plug socket as per IEC 60529 | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991005 |
| Lap | Overlap | Signal status display | With accessories |
| b-value | 0.4 | C value | 5.6l/sbar |
| Changeover time | 11ms | Duty cycle | 100% |
| Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Temperature of medium | -20°C 60°C | Ambient temperature | -20°C 60°C |
| Product weight | 440g | Electrical connection | 3-pin Form B Plug As per industrial standard (11 mm) |
| Type of mounting | With through-hole | Venting hole connection | Not ducted |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | NAMUR connection diagram |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | NAMUR connection diagram |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Wrought aluminum alloy |
| Material of screws | Steel, galvanized | Manufacturer ID | 577296 |
Specifications may be subject to change without notice
