vsnc-f-p53e-mh-n14-f19
Product ID:16787
Updated: 2026/4/3
Key Features
- 1Achieve high-flow performance with a 1050 l/min nominal rate. 2、Ensure precise control via reliable electric actuation. 3、Integrate easily with a compact 32 mm construction width. 4、Mount flexibly with optional installation positions. 5、Meet VDI/VDE 3845 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, exhausted | Actuation type | Electrical |
| Width | 32mm | Standard nominal flow rate | 1050l/min |
| Pneumatic working port | NAMUR connection diagram | Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) | Manual override | Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |

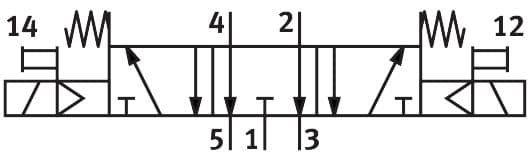

| Flow direction | Non-reversible | Symbol | 00991082 |
| Lap | Overlap | b-value | 0.4 |
| C value | 4.4l/sbar | Switching time off | 85ms |
| On switching time | 24ms | Changeover time | 60ms |
| Duty cycle | 100% | Coil characteristics | See solenoid coil, to be ordered separately |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | Product weight | 619g |
| Type of mounting | With through-hole | Venting hole connection | Not ducted |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | NAMUR connection diagram |
| Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 4 | NAMUR connection diagram |
| Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Wrought aluminum alloy |
| Material of screws | Steel, galvanized | Manufacturer ID | 8116397 |
Specifications may be subject to change without notice
