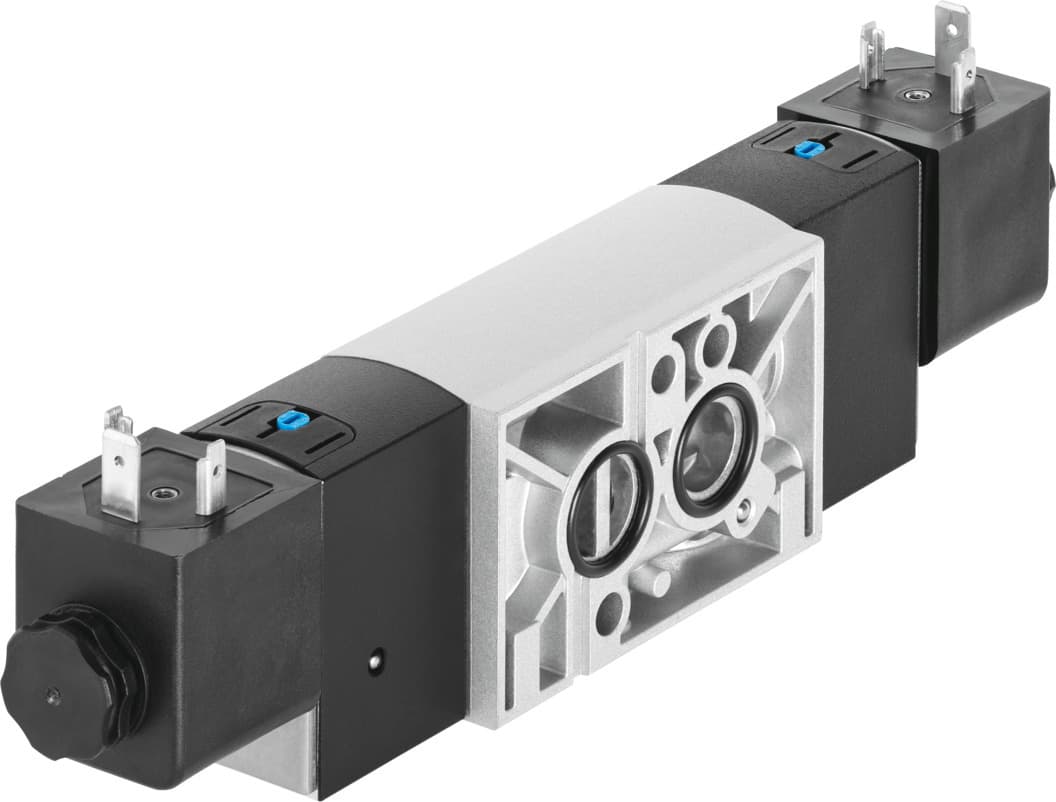

vsnc-ft-b52-d-g14-fn-1a1
Product ID:14653
Updated: 2026/7/14
Key Features
- 1Achieve a high 1000 l/min standard nominal flow rate.
- 2Operate reliably with 24V DC electrical actuation.
- 3Withstand harsh conditions via IP65 and IP67 protection.
- 4Mount the valve flexibly in any required position.
- 5Ensure safety meeting VDI/VDE 3845 and ATEX standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Width | 32mm | Standard nominal flow rate | 1000l/min |
| Pneumatic working port | NAMUR connection diagram | Operating voltage | 24V DC |
| Operating pressure | 1.5bar 8bar | Structural design | Plate seat |
| Certificate issuing authority | DNVGL-TAA000011J | Degree of protection | IP65 IP67 With plug socket as per IEC 60529 |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991005 | Lap | Underlap |
| Signal status display | With accessories | b-value | 0.24 |
| C value | 4.6l/sbar | Changeover time | 16ms |
| Duty cycle | 100% | Coil characteristics | 24 V DC: 0.7 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | Product weight | 635g |
| Electrical connection | Form A as per EN 175301-803 | Type of mounting | With through-hole |
| Venting hole connection | Not ducted | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | NAMUR connection diagram | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | NAMUR connection diagram | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
| Manufacturer ID | 577298 |
Specifications may be subject to change without notice
