vspa-b-d52-a2
Product ID:11244
Updated: 2026/4/3
Key Features
- 1Control pneumatic systems with a 550 l/min flow rate. 2、Ensure reliable operation using a soft-sealing piston slide design. 3、Install flexibly in any mounting position per ISO standards. 4、Achieve fast 6 ms switching with direct piloting. 5、Build durable systems with RoHS-compliant materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable, dominant | Actuation type | Pneumatic |
| Width | 18mm | Standard nominal flow rate | 550l/min |
| Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 G1/8 | Operating pressure | -0.9bar 10bar |
| Structural design | Piston gate valve | Nominal width | 5mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Conforms to standard | ISO 15407-1 VDMA 24563 |
| Type of control | Direct | Flow direction | Reversible |

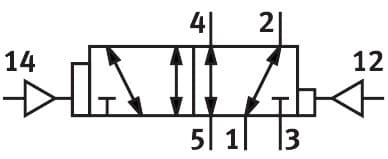

| Symbol | 00991042 | Lap | Overlap |
| Pilot pressure | 2bar 10bar | Flow rate of pneumatic valve | 750l/min |
| Flow rate of pneumatic valve on individual sub-base | 550l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 550l/min |
| Changeover time | 6ms | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Relative air humidity | 0 - 90 % |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Max. tightening torque for valve mounting | 0.9Nm 1.1Nm | Product weight | 80g |
| Pilot air port 12 | Sub-base, size 18 mm as per ISO 15407-1 | Pilot air port 14 | Sub-base, size 18 mm as per ISO 15407-1 |
| Pneumatic connection 1 | Sub-base, size 18 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 18 mm as per ISO 15407-1 |
| Pneumatic connection 3 | Sub-base, size 18 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 18 mm as per ISO 15407-1 |
| Pneumatic connection 5 | Sub-base, size 18 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Material of screws | Steel Galvanized | Manufacturer ID | 546725 |
