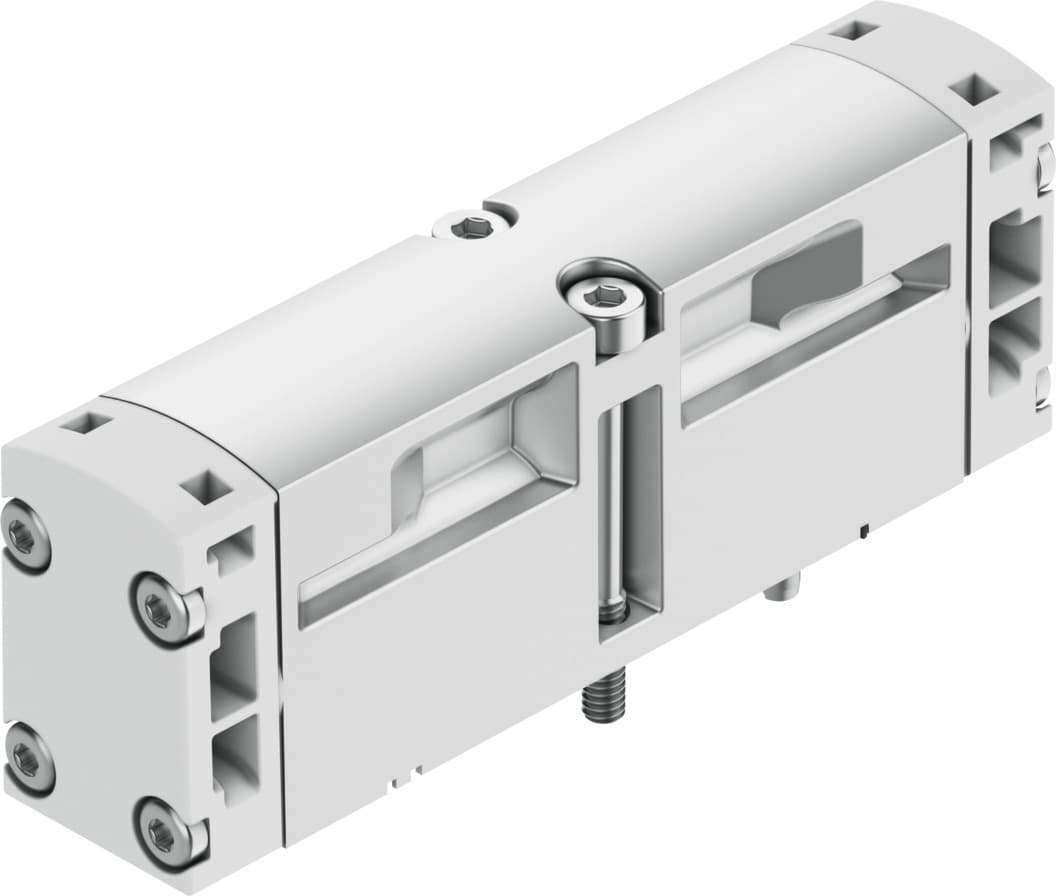

vspa-b-p53e-a2
Product ID:11248
Updated: 2026/7/15
Key Features
- 1Deliver efficient airflow with a 5/3 exhausted function.
- 2Provide 450 l/min flow for high-performance control.
- 3Feature a compact 18mm width for space-saving installation.
- 4Ensure reliable operation with a mechanical spring reset.
- 5Support lubricated air per ISO 8573-1 for enhanced longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, exhausted | Actuation type | Pneumatic |
| Width | 18mm | Standard nominal flow rate | 450l/min |
| Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 G1/8 | Operating pressure | -0.9bar 10bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Nominal width | 5mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Conforms to standard | ISO 15407-1 VDMA 24563 | Type of control | Direct |
| Flow direction | Reversible | Symbol | 00991021 |
| Lap | Overlap | Pilot pressure | 3bar 10bar |
| Flow rate of pneumatic valve | 650l/min | Flow rate of pneumatic valve on individual sub-base | 500l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 450l/min | Switching time off | 18ms |
| On switching time | 9ms | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Relative air humidity | 0 - 90 % |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Max. tightening torque for valve mounting | 0.9Nm 1.1Nm | Product weight | 80g |
| Pilot air port 12 | Sub-base, size 18 mm as per ISO 15407-1 | Pilot air port 14 | Sub-base, size 18 mm as per ISO 15407-1 |
| Pneumatic connection 1 | Sub-base, size 18 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 18 mm as per ISO 15407-1 |
| Pneumatic connection 3 | Sub-base, size 18 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 18 mm as per ISO 15407-1 |
| Pneumatic connection 5 | Sub-base, size 18 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Material of screws | Steel Galvanized | Manufacturer ID | 546729 |
Specifications may be subject to change without notice
