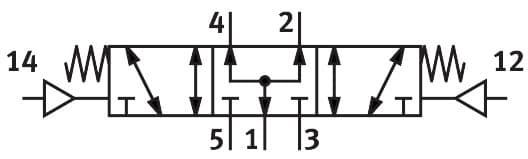

vspa-b-p53u-a1
Product ID:11237
Updated: 2026/4/3
Key Features
- 1Deliver precise airflow control with a 1000 l/min nominal flow rate. 2、Ensure durability in harsh environments using a die-cast aluminum piston gate valve. 3、Install flexibly in any position thanks to a compact 26 mm width design. 4、Operate safely in ATEX Zone 2 and 22 explosive atmospheres with a spring return. 5、Achieve over 67 million cycles for proven safety and longevity per ISO 13849-1.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, pressurized | Actuation type | Pneumatic |
| Width | 26mm | Standard nominal flow rate | 1000l/min |
| Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating pressure | -0.9bar 16bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Nominal width | 9mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Conforms to standard | ISO 15407-1 VDMA 24563 | Type of control | Direct |
| Flow direction | Reversible | Symbol | 00991022 |
| Lap | Overlap | Pilot pressure | 3bar 10bar |
| Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1100l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1000l/min | Switching time off | 32ms |
| On switching time | 13ms | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Relative air humidity | 0 - 90 % |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Max. tightening torque for valve mounting | 1.8Nm 2.2Nm | Product weight | 180g |
| Pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Material of screws | Steel Galvanized | Manufacturer ID | 546718 |
