vsva-b-t32h-ah-a1-1c1
Product ID:11327
Updated: 2026/4/3
Key Features
- 1Ensure precise control in pneumatic systems with reliable electrical actuation. 2、Handle various flow needs using a versatile 2x3/2 monostable valve function. 3、Withstand 2-10 bar pressure thanks to a robust die-cast aluminum housing. 4、Achieve a standard nominal flow rate of 900 l/min for moderate to high airflow. 5、Meet global standards like ISO 15407-1 and UL for compliance and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2x3/2, open/closed, monostable | Actuation type | Electrical |
| Valve size | 26mm | Standard nominal flow rate | 900l/min |
| Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating voltage | 24V DC |
| Operating pressure | 2bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Degree of protection | IP65 NEMA 4 | Nominal width | 9mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Conforms to standard | ISO 15407-1 VDMA 24563 |
| Manual override | Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |

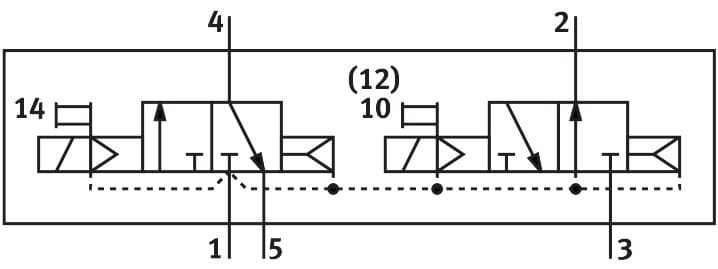

| Symbol | 00992808 | Lap | Overlap |
| Signal status display | LED | Pilot pressure MPa | 0.3MPa 1MPa |
| Pilot pressure | 3bar 10bar | Flow rate of pneumatic valve | 1250l/min |
| Flow rate of pneumatic valve on individual sub-base | 1000l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 900l/min |
| Switching time off | 28ms | On switching time | 20ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 1800μs |
| Max. negative test pulse on 1 signal | 800μs | Coil characteristics | 24 V DC: 1.8 W |
| Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Relative air humidity | 0 - 90 % | Noise level | 85dB(A) |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Max. tightening torque for valve mounting | 2Nm | Product weight | 305g |
| Electrical connection | Form C as per DIN EN 175301-803 Without PE conductor | Type of mounting | On sub-base |
| Auxiliary pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 | Auxiliary pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pilot exhaust air port 82/84 | Ducted Not ducted as per standard | Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Die-cast aluminum |
| Material of screws | Steel Galvanized | Manufacturer ID | 547066 |
Specifications may be subject to change without notice
