vsva-b-t32h-ah-a2-1r2l
Product ID:9815
Updated: 2026/4/3
Key Features
- 1Control pneumatic systems precisely with this 2x 3/2-way electrically-actuated Festo VSVA-B-T32H-AH-A2-1R2L solenoid valve. 2、Ensure compliance and reliability as it meets all documented specifications and operating conditions. 3、Achieve efficient operation with a standard nominal flow rate of 400 liters per minute. 4、Benefit from quick response times due to its electrical actuation for rapid switching. 5、Integrate seamlessly with various industrial standards using this Festo standards-based directional control valve.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2x3/2, open/closed, monostable | Actuation type | Electrical |
| Width | 18mm | Standard nominal flow rate | 400l/min |
| Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 | Operating voltage | 24V DC |
| Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | C-Tick c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Degree of protection | IP65 | Nominal width | 5mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Conforms to standard | ISO 15407-1 VDMA 24563 |
| Manual override | Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |

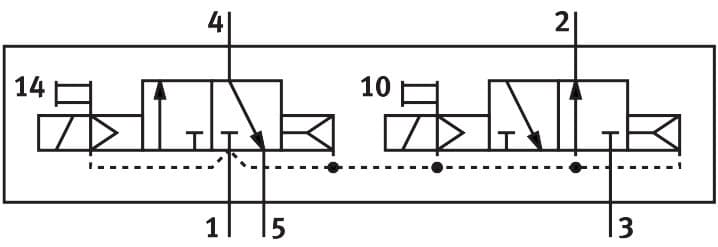

| Symbol | 00991806 | Lap | Overlap |
| Reverse polarity protection | for all electrical connections | Additional functions | Holding current reduction Safety shut-down |
| Signal status display | LED | Flow rate of pneumatic valve | 600l/min |
| Flow rate of pneumatic valve on individual sub-base | 450l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 400l/min |
| Switching time off | 22ms | On switching time | 10ms |
| DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 500μs | Max. negative test pulse on 1 signal | 500μs |
| Coil characteristics | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Relative air humidity | 0 - 90 % | Protection against direct and indirect contact | PELV |
| Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 0.9Nm 1.1Nm |
| Product weight | 140g | Electrical connection | 4-pin M8x1 Central plug Round design |
| Type of mounting | On sub-base | Note on materials | RoHS-compliant |
| Manufacturer ID | 534773 |
Specifications may be subject to change without notice
