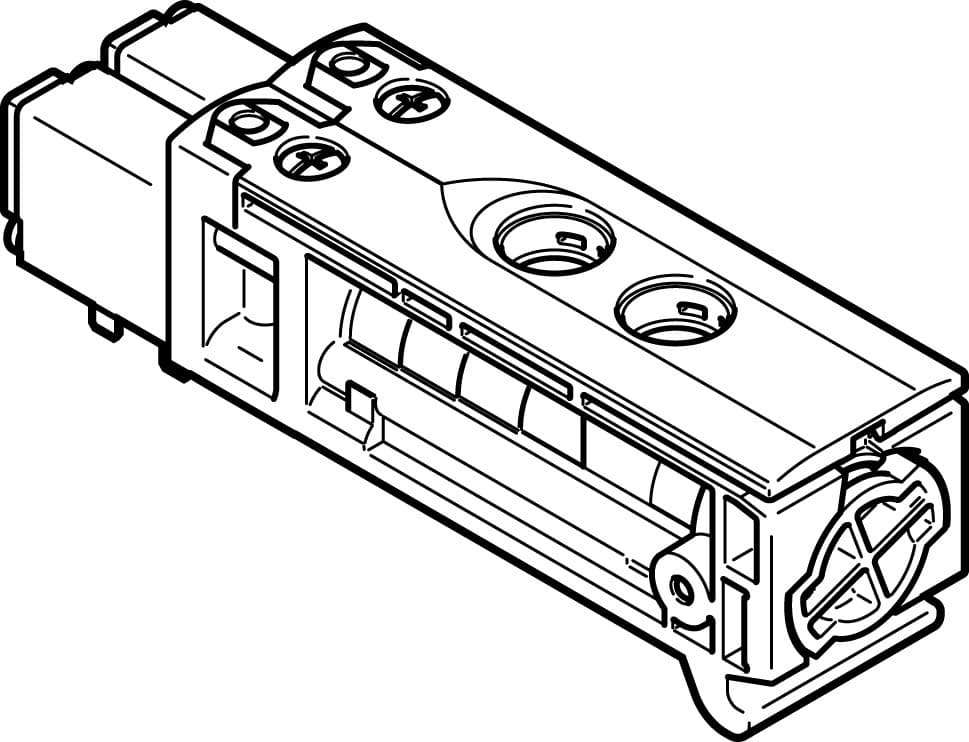

vuvb-st12-b52-zd-qx-d-1t1
Product ID:13587
Updated: 2026/4/3
Key Features
- 1Deliver precise 5/2 bistable operation for consistent control. 2、Achieve high flow rates up to 450 l/min for demanding applications. 3、Install the compact 24mm valve in space-limited panels. 4、Ensure durability with IP65 protection against harsh environments. 5、Reduce maintenance costs with reliable soft-sealing technology.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 24mm | Standard nominal flow rate | 260l/min 450l/min |
| Pneumatic working port | QS-4 QS-6 | Operating pressure | 2.8bar 8bar |
| Structural design | Poppet valve with self-holding function | Degree of protection | IP65 |
| Nominal width | 4mm | Exhaust air function | Without flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Non-reversible |
| Symbol | 00995756 | Information on operating pressure | 0 – 0.8 bar with external pilot air 0 - 8 bar with external pilot air |
| Pilot pressure MPa | 0.28MPa 0.8MPa | Pilot pressure | 2.8bar 8bar |
| Changeover time | 10ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 800μs | Max. negative test pulse on 1 signal | 300μs |
| Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 60°C | Noise level | 85dB(A) |
| Ambient temperature | -5°C 60°C | Product weight | 57.4g |
| Electrical connection | Via sub-base | Type of mounting | On sub-base |
| Auxiliary pilot air port 14 | Sub-base | Pneumatic connection 1 | Sub-base |
| Pneumatic connection 3 | Sub-base | Pneumatic connection 5 | Sub-base |
| Note on materials | RoHS-compliant | Seals material | NBR TPE-U(PU) |
| Housing material | PA-reinforced | Piston slide material | Wrought aluminum alloy |
| Manufacturer ID | 570911 |
Specifications may be subject to change without notice
