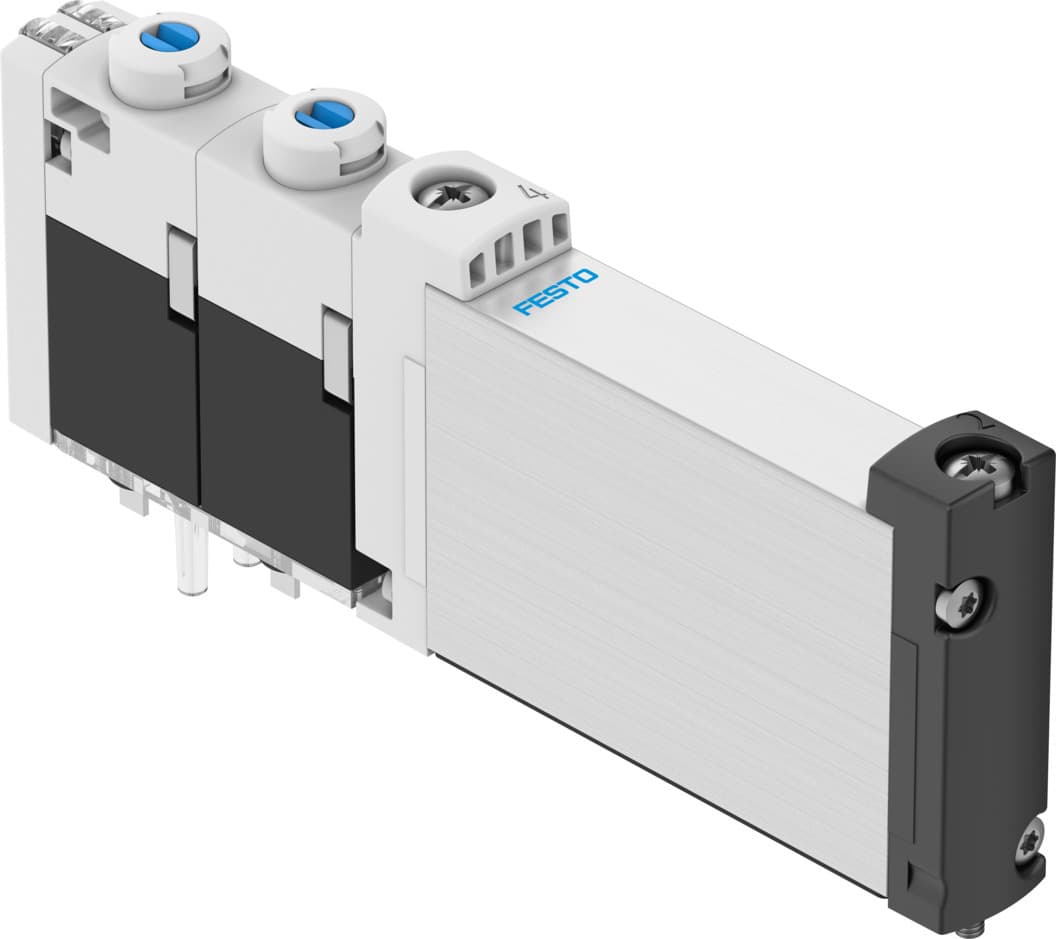

vuvg-b10-b52-zt-f-1t1l-ex2c
Product ID:15950
Updated: 2026/4/3
Key Features
- 1Achieve high flow rates up to 220 l/min for efficient system operation. 2、Ensure robust performance with IP65/IP67 protection against dust and water ingress. 3、Control easily using 24V DC electric actuation for simple integration. 4、Mount versatilely in various positions including on manifold rails. 5、Extend service life up to 34 million cycles with minimal maintenance required.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 10mm | Standard nominal flow rate | 220l/min |
| Pneumatic working port | Flange | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Degree of protection | IP65 IP67 |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Flow direction | Reversible | Symbol | 00991125 |
| Lap | Overlap | Signal status display | LED |
| Pilot pressure MPa | 0.15MPa 0.8MPa | Pilot pressure | 1.5bar 8bar |
| Max. switching frequency | 3Hz | Changeover time | 9ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 1600μs |
| Max. negative test pulse on 1 signal | 3000μs | Coil characteristics | 22 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -5°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
| Product weight | 60g | Electrical connection | Via sub-base |
| Type of mounting | On terminal strip | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8041888 |
