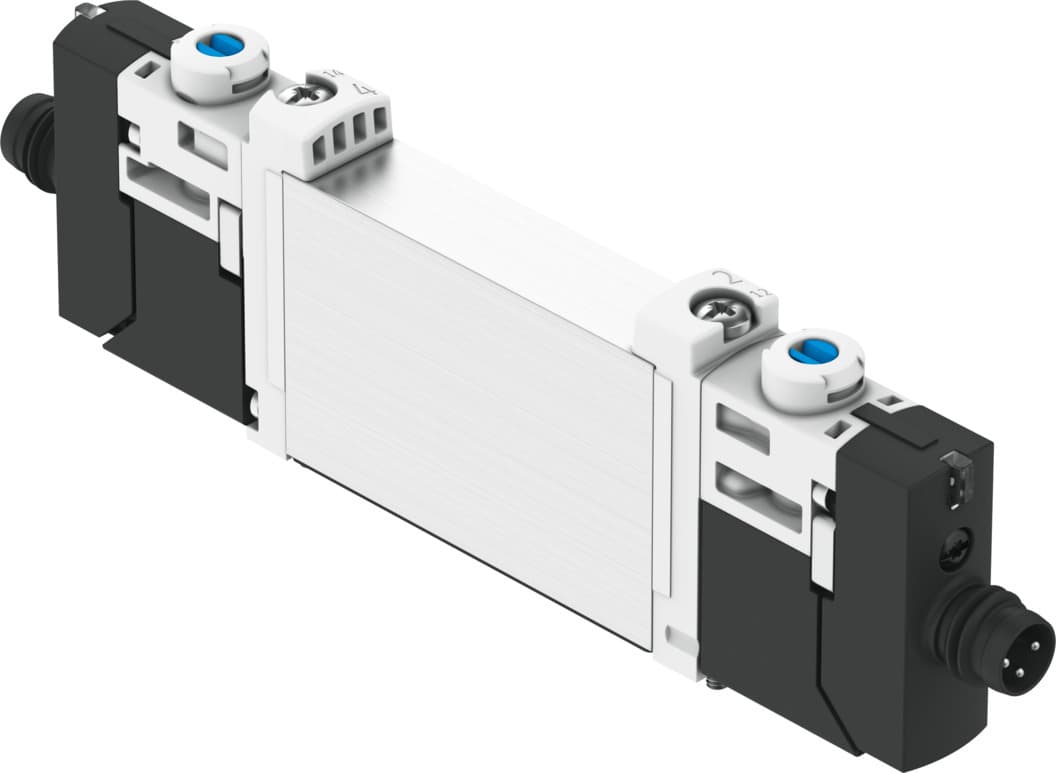

vuvg-b10-t32u-azt-f-1r8l
Product ID:14016
Updated: 2026/4/4
Key Features
- 1Maximize flow rates up to 160 l/min for high-speed applications. 2、Utilize a compact design to save critical panel space. 3、Configure internal or external pilot air for flexible manifold assembly. 4、Ensure reliable operation with soft sealing and pneumatic spring reset. 5、Meet rigorous safety standards with UL and CSA certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2x3/2, open, monostable | Actuation type | Electrical |
| Valve size | 10mm | Standard nominal flow rate | 150l/min 170l/min |
| Pneumatic working port | Flange | Operating voltage | 24V DC |
| Operating pressure | 1.5bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket | Nominal width | 2.7mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Symbol | 00992906 | Lap | Overlap |
| Pilot pressure MPa | 0.15MPa 0.8MPa | Pilot pressure | 1.5bar 8bar |
| Suitability for vacuum | no | Switching time off | 15ms |
| On switching time | 6ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 60°C | Product weight | 55g |
| Electrical connection | Via electrical sub-base | Type of mounting | On terminal strip |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 574235 |
Specifications may be subject to change without notice
