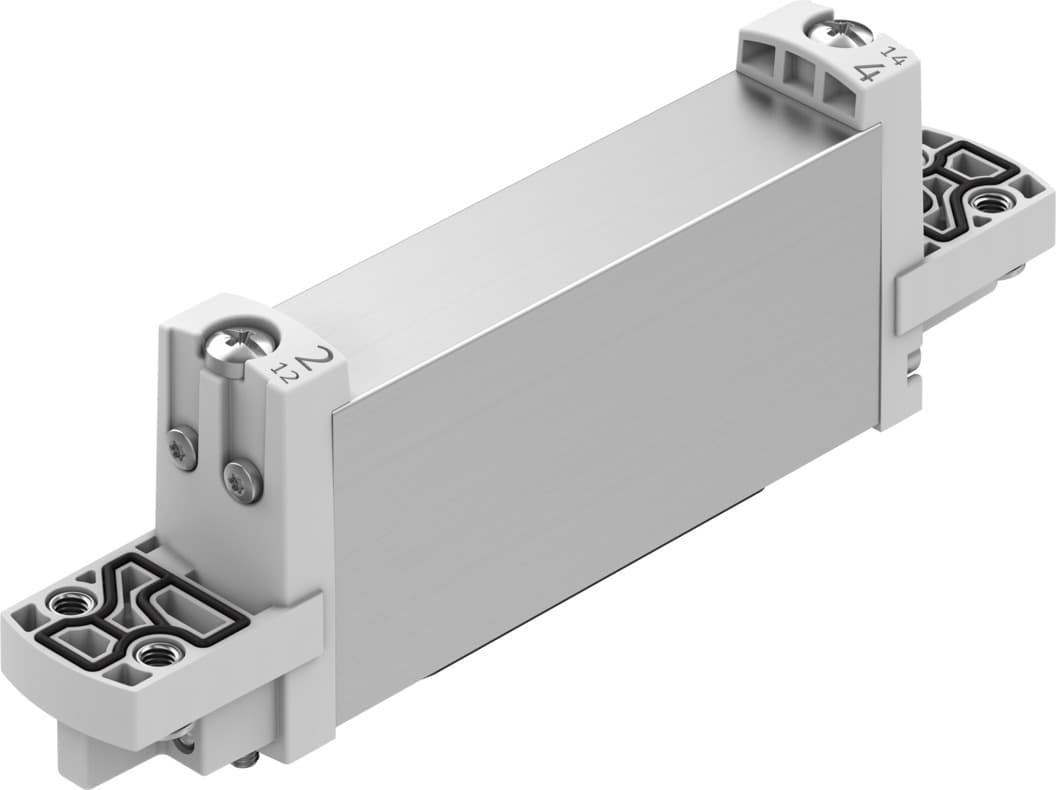

vuvg-b14-b52-z-f-p1
Product ID:15615
Updated: 2026/7/15
Key Features
- 1Achieve high flow rates from 570 to 680 l/min.
- 2Utilize a compact 14 mm valve with soft sealing.
- 3Control easily via an integrated electric pilot valve.
- 4Operate reliably in dusty or wet conditions.
- 5Apply in versatile vacuum and pneumatic systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 570l/min 680l/min |
| Pneumatic working port | Flange | Operating pressure | -0.9bar 10bar |
| Structural design | Piston gate valve | Certification | c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 | Degree of protection | IP65 With electrical pilot valve and plug socket |
| Nominal width | 5.6mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Symbol | 00991125 | Lap | Overlap |
| Pilot pressure MPa | 0.15MPa 0.8MPa | Pilot pressure | 1.5bar 8bar |
| Suitability for vacuum | yes | Changeover time | 12ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
| Max. negative test pulse on 1 signal | 900μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 60°C | Product weight | 65g |
| Electrical connection | Via electric pilot valve | Type of mounting | On terminal strip |
| Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8033543 |
Specifications may be subject to change without notice
