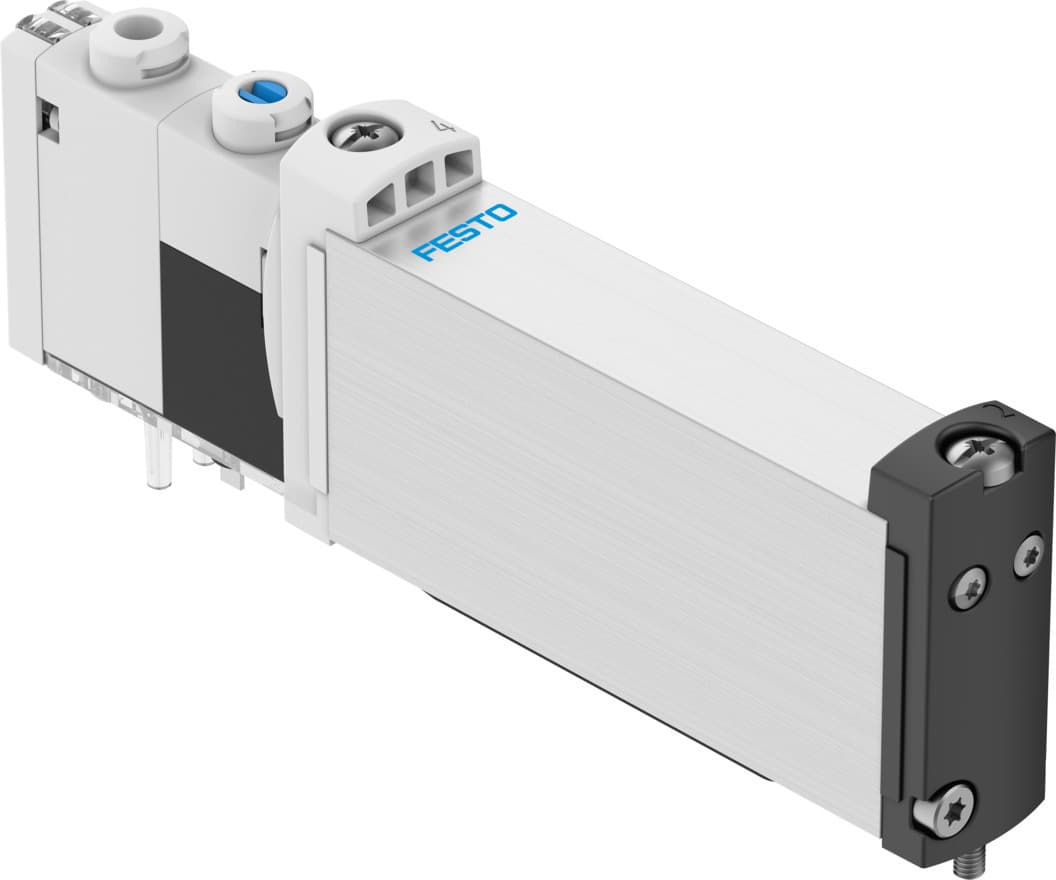

vuvg-b14-m52-azt-f-1t1l-ex2c
Product ID:15970
Updated: 2026/4/3
Key Features
- 1Control pneumatic systems precisely with a 5/2 monostable function. 2、Ensure durability via a robust piston gate valve design. 3、Achieve efficient operation with a 500 l/min standard flow rate. 4、Handle diverse applications with a -0.9 to 10 bar pressure range. 5、Simplify installation using electrical actuation and flange ports.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 500l/min |
| Pneumatic working port | Flange | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Reversible |
| Symbol | 00991053 | Lap | Overlap |
| Signal status display | LED | Pilot pressure MPa | 0.15MPa 0.8MPa |
| Pilot pressure | 1.5bar 8bar | Max. switching frequency | 3Hz |
| Switching time off | 26ms | On switching time | 13ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 1600μs |
| Max. negative test pulse on 1 signal | 3000μs | Coil characteristics | 22 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -5°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
| Product weight | 91g | Electrical connection | Via sub-base |
| Type of mounting | On terminal strip | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8041964 |
Specifications may be subject to change without notice
