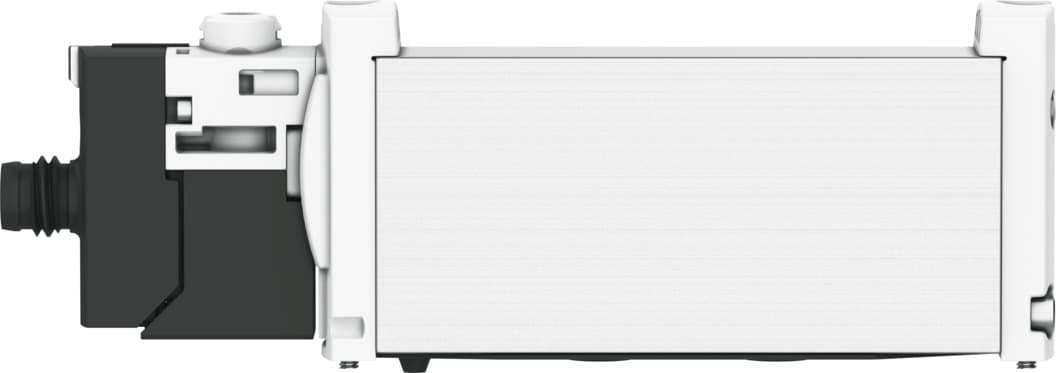

vuvg-b14-m52-mzt-f-1r8l
Product ID:14718
Updated: 2026/4/3
Key Features
- 1Achieve precise 5/2-way monostable operation for reliable control. 2、Integrate easily with electric actuation for efficient system operation. 3、Save space with a compact 14 mm valve design. 4、Handle air efficiently with a 520-630 l/min high flow rate. 5、Ensure durability with IP65 protection against dust and water.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 520l/min 630l/min |
| Pneumatic working port | Flange | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 8bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket | Nominal width | 5.6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Symbol | 00991025 | Lap | Overlap |
| Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
| Suitability for vacuum | yes | Switching time off | 40ms |
| On switching time | 13ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 60°C | Product weight | 70g |
| Electrical connection | Via electrical sub-base | Type of mounting | On terminal strip |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 578158 |
Specifications may be subject to change without notice
