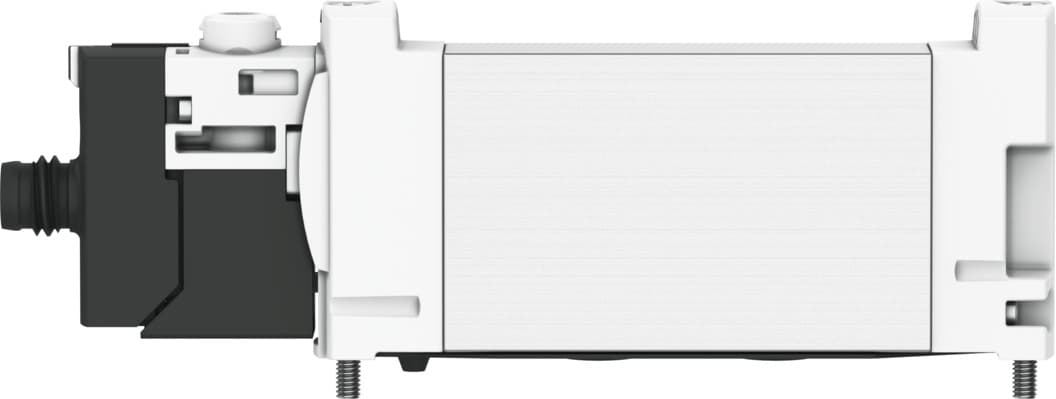

vuvg-bk14-m52-at-f-1r8l-s
Product ID:16006
Updated: 2026/4/3
Key Features
- 1Achieve a high 380 l/min standard flow rate for efficient system operation. 2、Utilize a compact 14 mm design to save valuable panel space. 3、Operate reliably with 24V DC electrical actuation for versatile control. 4、Integrate easily via flange connections for pneumatic system compatibility. 5、Ensure durability with a piston gate valve and soft sealing principle.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 380l/min |
| Pneumatic working port | Flange | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 7bar | Structural design | Piston slide with sealing ring |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 | Degree of protection | IP65 |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00992908 |
| Lap | Overlap | Signal status display | LED |
| Max. switching frequency | 2Hz | Switching time off | 24ms |
| On switching time | 14ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
| Coil characteristics | 24 V DC: 0.8 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 50°C | Product weight | 65g |
| Electrical connection | 3-pin M8x1 A-coded as per EN 61076-2-104 Plug | Type of mounting | On terminal strip With through-hole |
| Pneumatic connection 2 | Flange | Pneumatic connection 4 | Flange |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 8042575 |
Specifications may be subject to change without notice
