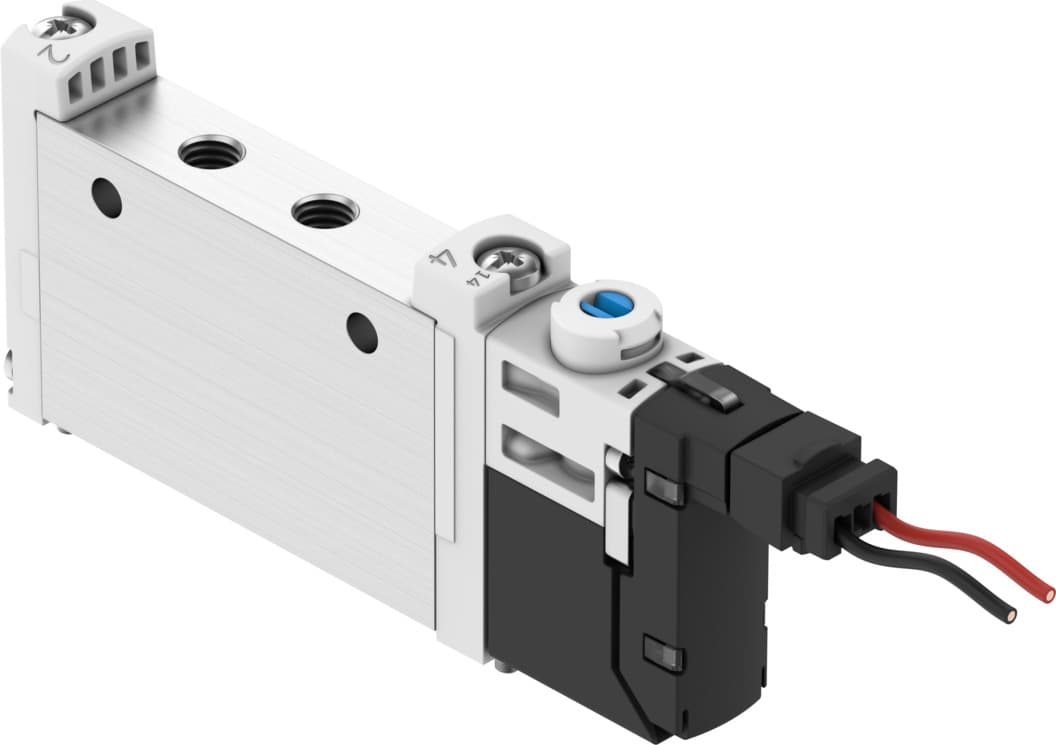

vuvg-l10-m52-rt-m5-1h2l-w1
Product ID:14654
Updated: 2026/4/3
Key Features
- 1Achieve precise control with a high-performance 5/2-way monostable valve function. 2、Maximize system efficiency with a 220 l/min standard nominal flow rate. 3、Ensure reliable operation with 24V DC power and tolerance for voltage fluctuations. 4、Benefit from durable, leak-resistant piston gate valve design with soft sealing. 5、Meet global safety and environmental standards with RCM and UL certification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 10mm | Standard nominal flow rate | 220l/min |
| Pneumatic working port | M5 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring Pneumatic spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of protection | IP40 With plug socket | Nominal width | 3.2mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Symbol | 00992233 | Lap | Overlap |
| Pilot pressure MPa | 0.25MPa 0.8MPa | Pilot pressure | 2.5bar 8bar |
| Suitability for vacuum | no | Switching time off | 17ms |
| On switching time | 8ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
| Product weight | 45g | Electrical connection | Via electrical sub-base |
| Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Pneumatic connection 3 | M5 |
| Pneumatic connection 4 | M5 | Pneumatic connection 5 | M5 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 577316 |
