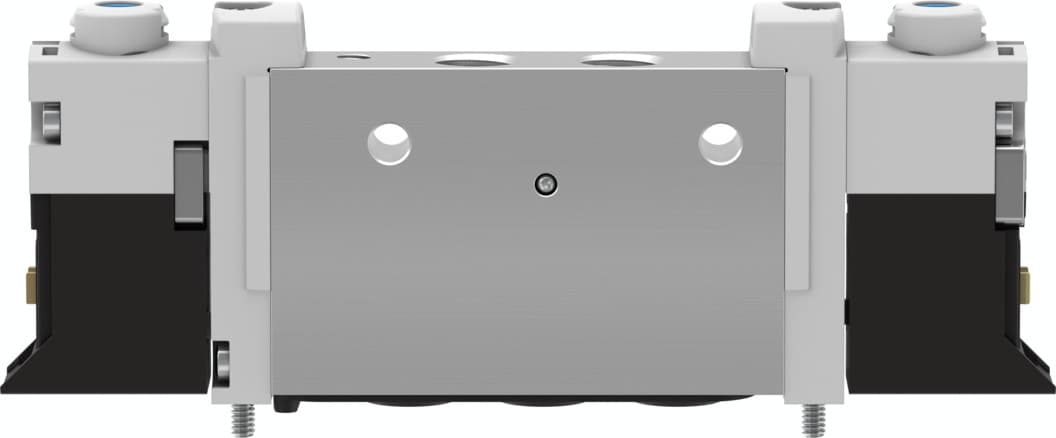

vuvg-l10-p53u-zt-m7-1p3
Product ID:13275
Updated: 2026/4/4
Key Features
- 1Deliver high flow rates up to 300 l/min for efficient system performance. 2、Utilize a compact 10 mm design to save valuable panel space. 3、Ensure reliable operation with mechanical spring return and soft sealing. 4、Mount in any position with an external pilot air supply port. 5、Meet RCM, CSA, and UL standards for global compliance and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, pressurized | Actuation type | Electrical |
| Valve size | 10mm | Standard nominal flow rate | 300l/min 320l/min |
| Pneumatic working port | M7 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of protection | IP40 IP65 With plug socket | Nominal width | 3.5mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Symbol | 00991753 | Lap | Indefinite overlap |
| Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
| Suitability for vacuum | yes | Switching time off | 30ms |
| On switching time | 11ms | Changeover time | 14ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
| Product weight | 55g | Electrical connection | Via electrical sub-base |
| Type of mounting | Optionally: On terminal strip With through-hole | Pilot air port 12/14 | M3 |
| Pneumatic connection 1 | M7 | Pneumatic connection 2 | M7 |
| Pneumatic connection 3 | M7 | Pneumatic connection 4 | M7 |
| Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 566486 |
Specifications may be subject to change without notice
