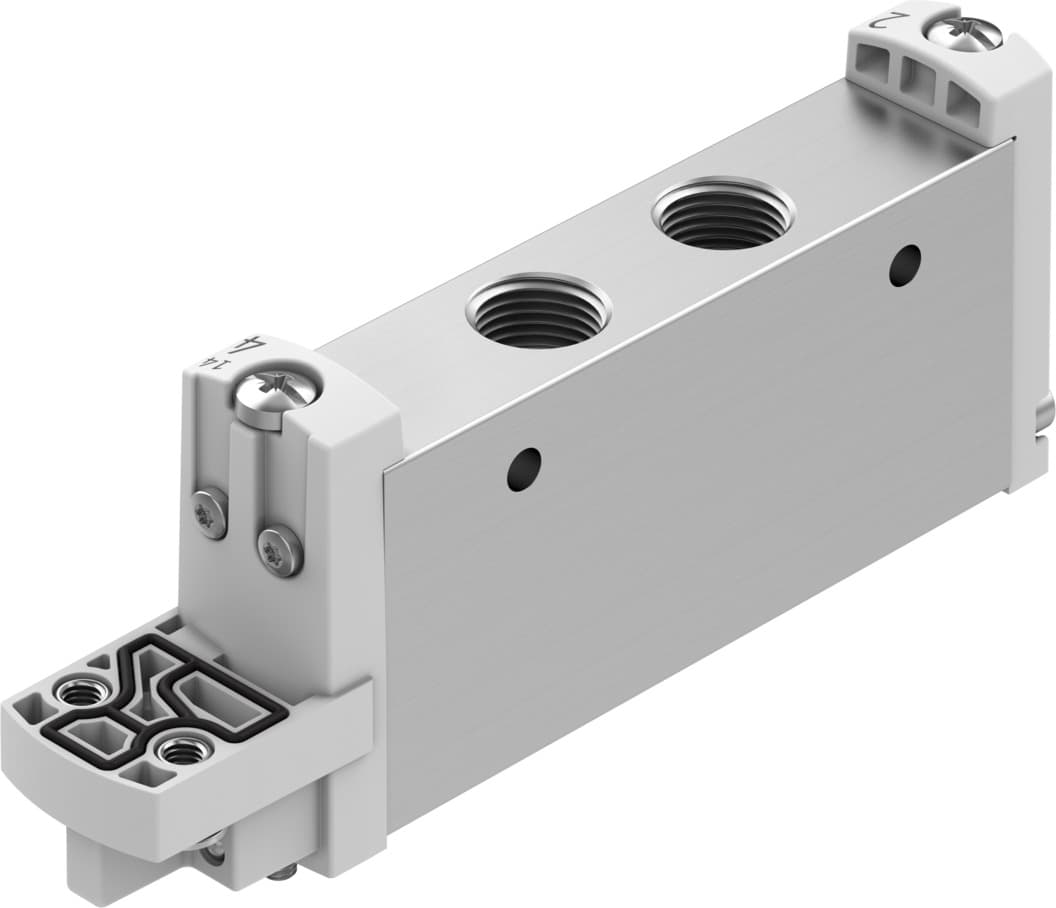

vuvg-l14-m52-m-g18-p1
Product ID:15602
Updated: 2026/4/4
Key Features
- 1Deliver a standard nominal flow rate of 700 to 780 l/min. 2、Operate as a 5/2-way monostable piston gate valve with spring reset. 3、Mount securely on walls or H-rails for flexible installation. 4、Handle an operating pressure range from 0.3 to 0.8 MPa. 5、Ensure safety with c UL us recognition and IP65 protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 700l/min 780l/min |
| Pneumatic working port | G1/8 | Operating pressure | 3bar 8bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 5.6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Symbol | 00991003 |
| Lap | Overlap | Pilot pressure MPa | 0.3MPa 0.8MPa |
| Pilot pressure | 3bar 8bar | Suitability for vacuum | no |
| Switching time off | 26ms | On switching time | 12ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
| Max. negative test pulse on 1 signal | 900μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
| Product weight | 58g | Electrical connection | Via electric pilot valve |
| Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 | Pilot interface | as per ISO 15218 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 8033530 |
Specifications may be subject to change without notice
