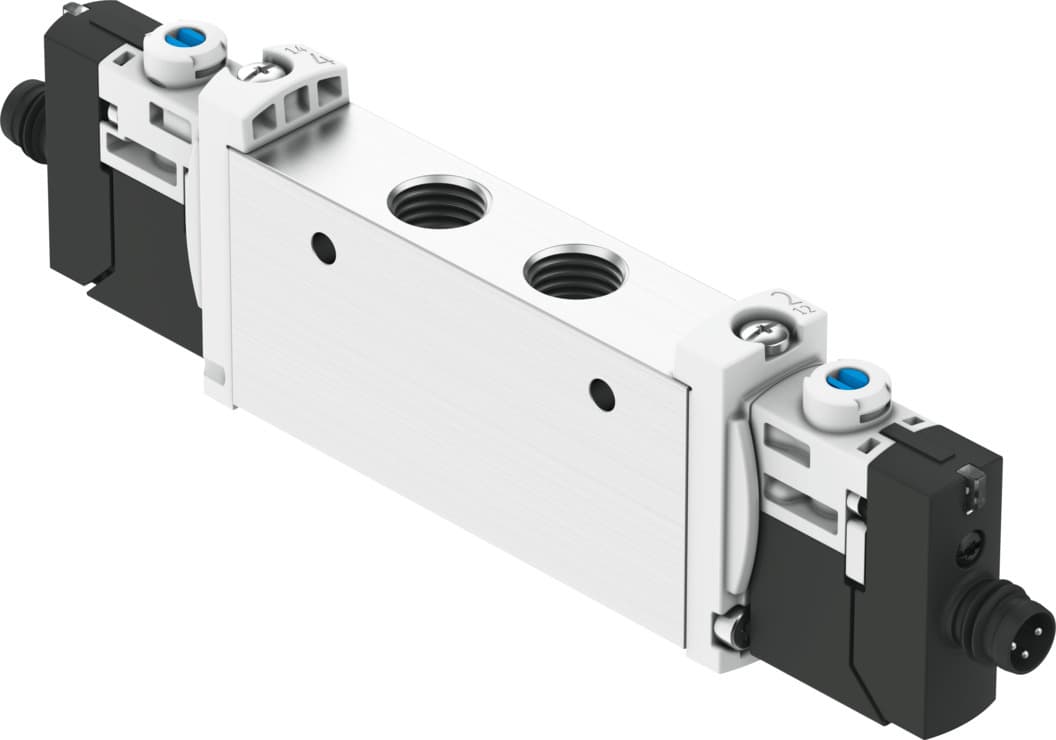

vuvg-l14-t32c-mt-g18-1r8l
Product ID:15413
Updated: 2026/4/4
Key Features
- 1Achieve high flow rates up to 550 l/min standard. 2、Ensure durability with a robust piston gate valve construction. 3、Gain precise control via pilot operation with internal lap. 4、Operate reliably across 3-8 bar pressure and -5°C to 60°C. 5、Meet safety standards with RCM mark and IP65 protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2x3/2, closed, monostable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 520l/min 550l/min |
| Pneumatic working port | G1/8 | Operating voltage | 24V DC |
| Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket | Nominal width | 4.3mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Symbol | 00995242 | Lap | Overlap |
| Pilot pressure MPa | 0.35MPa 0.8MPa | Pilot pressure | 3.5bar 8bar |
| Suitability for vacuum | no | Switching time off | 18ms |
| On switching time | 12ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
| Product weight | 80g | Electrical connection | Via electrical sub-base |
| Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8031504 |
