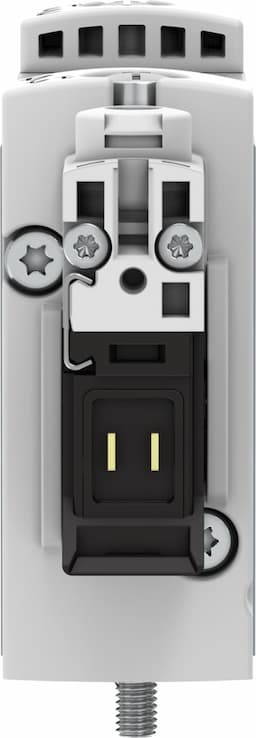

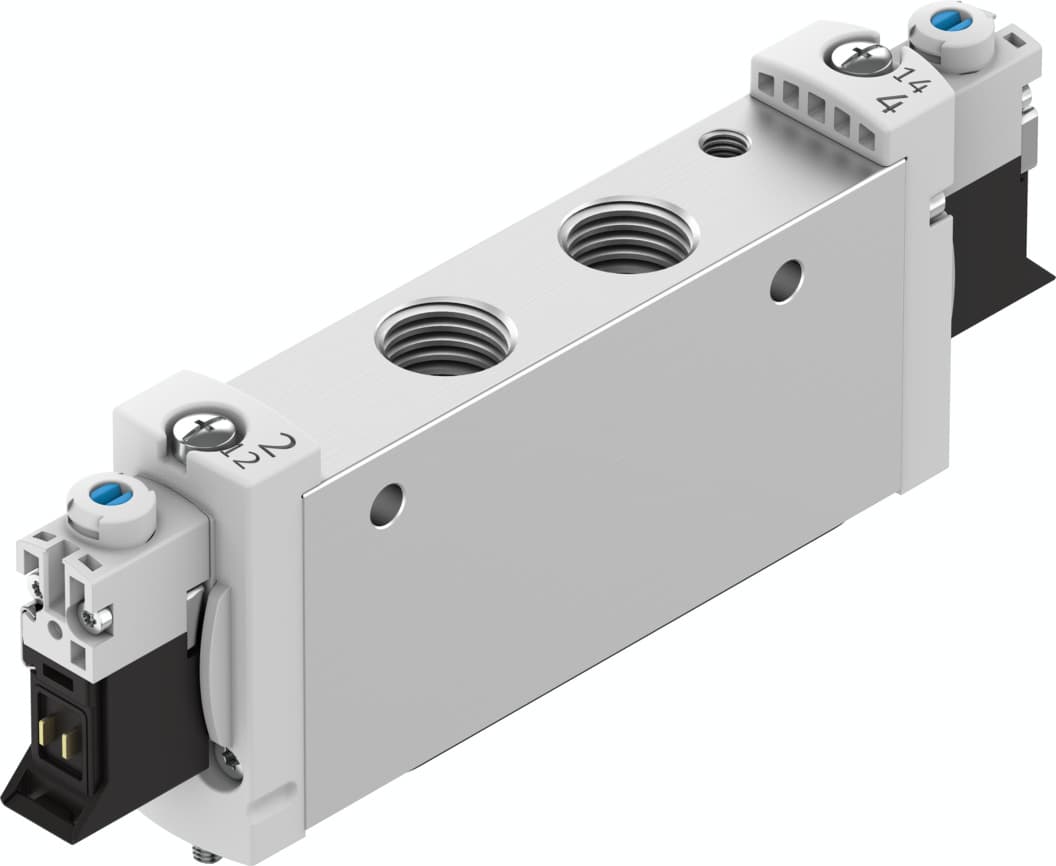

vuvg-l18-b52-zt-g14-1p3
Product ID:14123
Updated: 2026/7/15
Key Features
- 1Deliver high flow rates up to 1380 L/min for efficient pneumatic operations.
- 2Control easily with 24V DC electrical actuation for reliable performance.
- 3Save space with a compact 18 mm valve design.
- 4Maintain position with bistable function for consistent control.
- 5Ensure durability with robust, ISO-standard construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 18mm | Standard nominal flow rate | 1380l/min |
| Pneumatic working port | G1/4 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Certification | RCM compliance mark c UL us - Recognized (OL) | Degree of protection | IP40 IP65 With plug socket |
| Nominal width | 7.3mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting Non-detenting Covered | Type of control | Pilot-controlled |
| Pilot air supply port | External | Symbol | 00991062 |
| Lap | Overlap | Pilot pressure MPa | 0.15MPa 0.8MPa |
| Pilot pressure | 1.5bar 8bar | Changeover time | 11ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
| Product weight | 164g | Electrical connection | Via electrical sub-base |
| Type of mounting | Optionally: On terminal strip With through-hole | Pilot air port 12/14 | M5 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 574439 |
Specifications may be subject to change without notice
