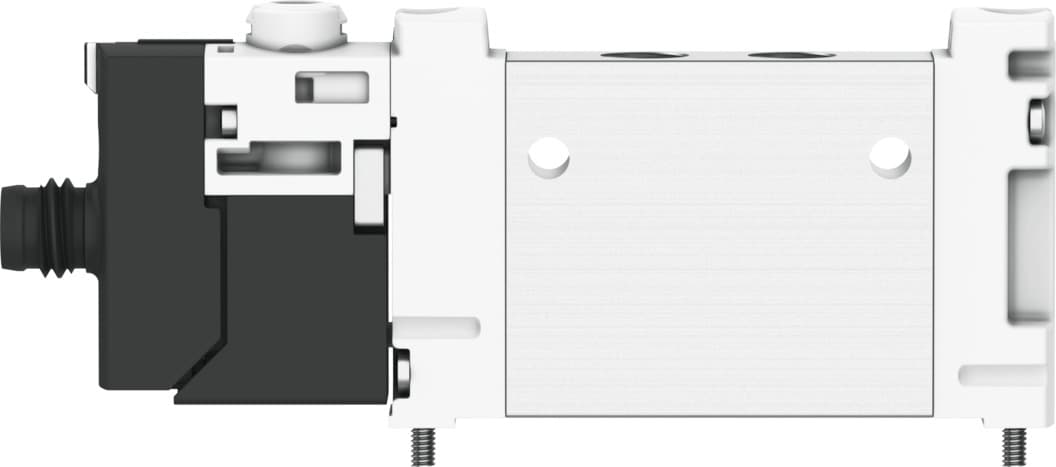

vuvg-lk10-m52-at-m7-1r8l-s
Product ID:15988
Updated: 2026/4/3
Key Features
- 1Achieve precise flow control with a 340 l/min nominal rate. 2、Integrate easily using the compact 10 mm valve design. 3、Reduce energy consumption with 24V DC and 0.8 W operation. 4、Ensure robust performance with 2.5-7 bar pressure and IP65. 5、Monitor status via LED and utilize non-reversible flow.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 10mm | Standard nominal flow rate | 340l/min |
| Pneumatic working port | M7 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 7bar | Structural design | Piston slide with sealing ring |
| Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 | Degree of protection | IP65 |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00992908 |
| Lap | Overlap | Signal status display | LED |
| Max. switching frequency | 2Hz | Switching time off | 17ms |
| On switching time | 14ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
| Coil characteristics | 24 V DC: 0.8 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 50°C | Product weight | 45g |
| Electrical connection | 3-pin M8x1 A-coded as per EN 61076-2-104 Plug | Type of mounting | On terminal strip With through-hole |
| Pneumatic connection 2 | M7 | Pneumatic connection 4 | M7 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 8042551 |
