vuvs-l20-p53c-md-n18-f7
Product ID:14444
Updated: 2026/7/14
Key Features
- 1Achieve high 700 l/min flow for efficient pneumatic system operation.
- 2Integrate easily with a compact 21 mm size and 1/8 NPT ports.
- 3Ensure durability via a robust piston gate and mechanical spring reset.
- 4Control precisely with pilot-operated design and internal air supply.
- 5Meet ISO 8573-1:2010 and CRC 2 standards for reliable performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|

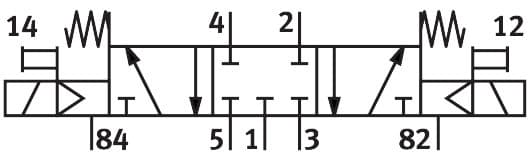

| Valve function | 5/3, closed | Actuation type | Electrical |
| Valve size | 21mm | Standard nominal flow rate | 700l/min |
| Pneumatic working port | 1/8 NPT | Operating pressure | 2.5bar 10bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Certification | c UL us - Recognized (OL) | Nominal width | 5mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991033 |
| Lap | Overlap | b-value | 0.35 |
| C value | 2.9l/sbar | Switching time off | 42ms |
| On switching time | 13ms | Changeover time | 24ms |
| Max. positive test pulse with 0 signal | 1900μs | Max. negative test pulse on 1 signal | 2700μs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Product weight | 229g | Type of mounting | Optionally: On terminal strip With through-hole |
| Venting hole connection | Not ducted | Pilot exhaust air port 82 | 10-32 UNF-2B |
| Pilot exhaust air port 84 | 10-32 UNF-2B | Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 2 | 1/8 NPT | Pneumatic connection 3 | 1/8 NPT |
| Pneumatic connection 4 | 1/8 NPT | Pneumatic connection 5 | 1/8 NPT |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Die-cast aluminum Painted | Piston slide material | High-alloy stainless steel |
| Material of screws | Steel, galvanized | Manufacturer ID | 575708 |
Specifications may be subject to change without notice
