vuvs-l20-p53u-md-n18-f7
Product ID:14446
Updated: 2026/4/3
Key Features
- 1Deliver high performance with a 600 L/min flow rate for demanding applications. 2、Ensure precise control via 24V DC electrical actuation for reliable operation. 3、Build durability with a die-cast aluminum housing and stainless steel piston. 4、Meet safety standards with cULus recognition and IP65 protection certification. 5、Install flexibly in any position using soft sealing and spring reset.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, pressurized | Actuation type | Electrical |
| Valve size | 21mm | Standard nominal flow rate | 600l/min |
| Pneumatic working port | 1/8 NPT | Operating pressure | 2.5bar 10bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Certification | c UL us - Recognized (OL) | Nominal width | 4.8mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |

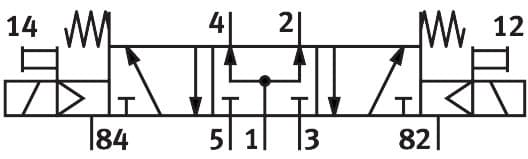

| Flow direction | Non-reversible | Symbol | 00991034 |
| Lap | Overlap | b-value | 0.35 |
| C value | 2.5l/sbar | Switching time off | 42ms |
| On switching time | 13ms | Changeover time | 21ms |
| Max. positive test pulse with 0 signal | 1900μs | Max. negative test pulse on 1 signal | 2700μs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Product weight | 229g | Type of mounting | Optionally: On terminal strip With through-hole |
| Venting hole connection | Not ducted | Pilot exhaust air port 82 | 10-32 UNF-2B |
| Pilot exhaust air port 84 | 10-32 UNF-2B | Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 2 | 1/8 NPT | Pneumatic connection 3 | 1/8 NPT |
| Pneumatic connection 4 | 1/8 NPT | Pneumatic connection 5 | 1/8 NPT |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Die-cast aluminum Painted | Piston slide material | High-alloy stainless steel |
| Material of screws | Steel, galvanized | Manufacturer ID | 575710 |
Specifications may be subject to change without notice
