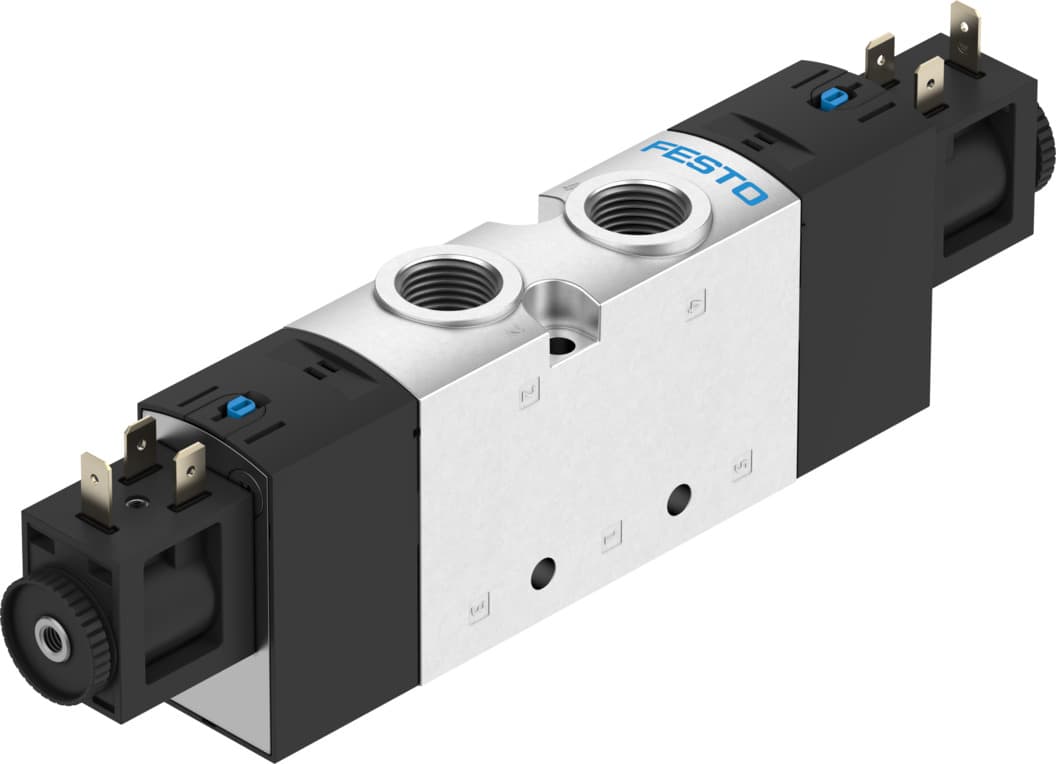

vuvs-l25-b52-d-g14-f8-1b2
Product ID:14285
Updated: 2026/4/3
Key Features
- 1Achieve a high 1300 l/min flow rate for demanding pneumatic applications. 2、Ensure durability with a die-cast aluminum housing and steel screws. 3、Utilize versatile 5/2 double solenoid functionality for precise control. 4、Operate efficiently with 24V DC and an 11 ms switching time. 5、Meet safety standards with UL certification for harsh environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 26.5mm | Standard nominal flow rate | 1300l/min |
| Pneumatic working port | G1/4 | Operating voltage | 24V DC |
| Operating pressure | 1.5bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
| Certificate issuing authority | DNVGL-TAA000011J | Degree of protection | IP65 With plug socket as per IEC 60529 |
| Nominal width | 6.9mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991013 | Lap | Overlap |
| b-value | 0.4 | C value | 5.6l/sbar |
| Changeover time | 11ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 3600μs |
| Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Cleanroom class | Class 6 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 60°C | Product weight | 428g |
| Electrical connection | Form B As per industrial standard (11 mm) | Type of mounting | Optionally: On terminal strip With through-hole |
| Venting hole connection | Not ducted | Pilot exhaust air port 82 | M5 |
| Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Die-cast aluminum Painted | Piston slide material | Wrought aluminum alloy |
| Material of screws | Steel, galvanized | Manufacturer ID | 575520 |
Specifications may be subject to change without notice
