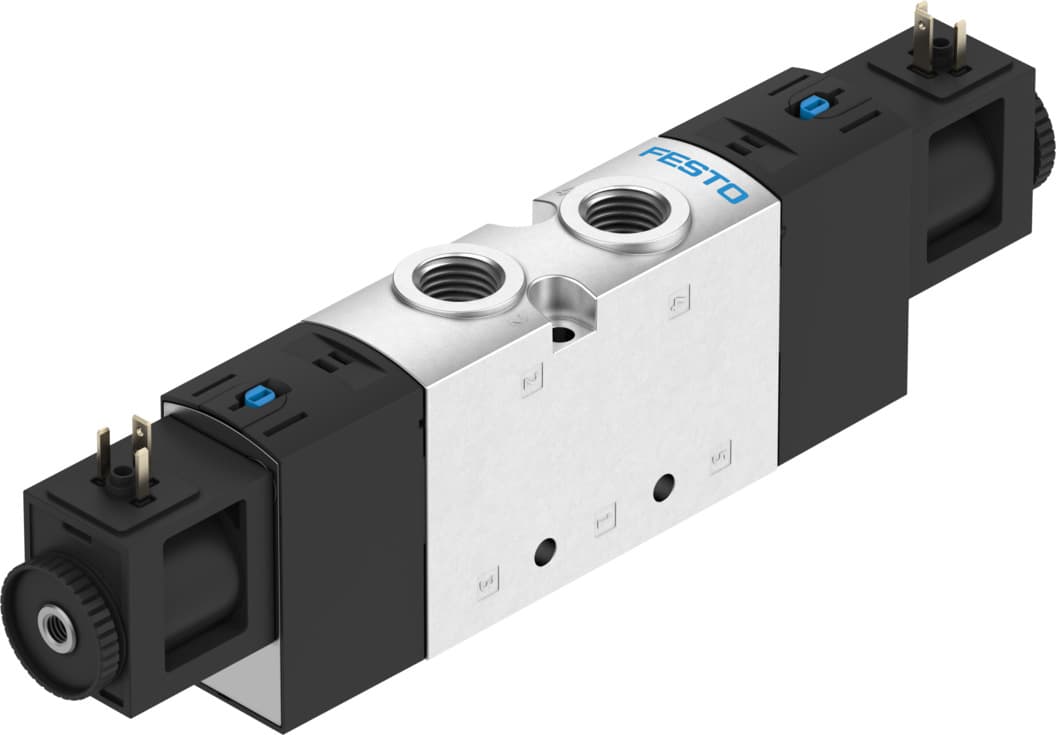

vuvs-l25-b52-d-g14-f8-1c1
Product ID:14283
Updated: 2026/7/15
Key Features
- 1Achieve precise pneumatic control with 1300 l/min flow rate.
- 2Operate reliably using a 24V electrical signal for versatility.
- 3Ensure durability and corrosion resistance with robust construction.
- 4Install flexibly in any mounting position to simplify design.
- 5Meet safety standards with cULus recognition and RoHS compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 26.5mm | Standard nominal flow rate | 1300l/min |
| Pneumatic working port | G1/4 | Operating voltage | 24V DC |
| Operating pressure | 1.5bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Degree of protection | IP65 With plug socket as per IEC 60529 |
| Nominal width | 6.9mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991013 | Lap | Overlap |
| b-value | 0.4 | C value | 5.6l/sbar |
| Changeover time | 11ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 3600μs |
| Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Cleanroom class | Class 6 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 60°C | Product weight | 428g |
| Electrical connection | Form C as per EN 175301-803 | Type of mounting | Optionally: On terminal strip With through-hole |
| Venting hole connection | Not ducted | Pilot exhaust air port 82 | M5 |
| Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Die-cast aluminum Painted | Piston slide material | Wrought aluminum alloy |
| Material of screws | Steel, galvanized | Manufacturer ID | 575518 |
Specifications may be subject to change without notice
