In Stock

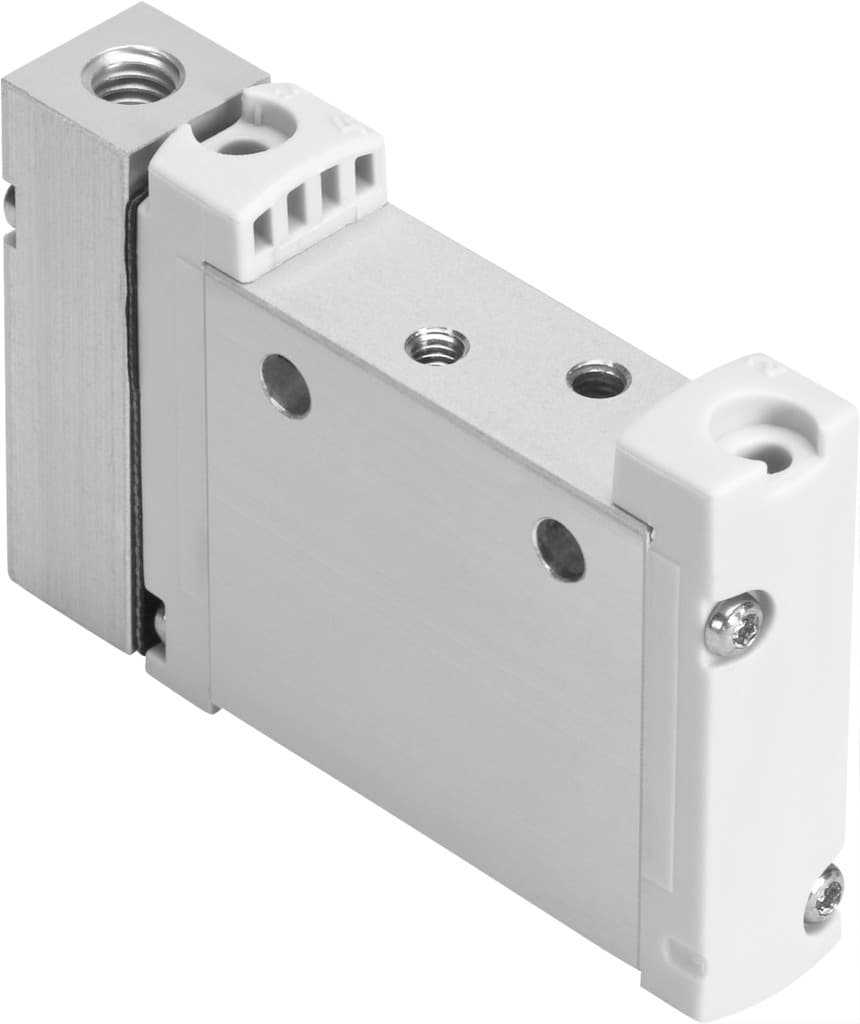

vuwg-l10a-m52-r-m3

Product ID:13867

Updated: 2026/4/4

Key Features

1Deliver reliable 5/2 monostable valve function for precise pneumatic control. 2、Utilize a compact 10 mm valve size for space-saving installations. 3、Achieve a standard nominal flow rate of 100 l/min for efficient system operation. 4、Operate within a 2.5 to 8 bar pressure range with IP40/IP65 protection for durability. 5、Mount optionally on manifold rail or via through-hole for flexible installation.

Detailed engineering parameters

Parameter	Value	Parameter	Value
Valve function	5/2, monostable	Actuation type	Pneumatic
Valve size	10mm	Standard nominal flow rate	100l/min
Pneumatic working port	M3	Operating pressure	2.5bar 10bar
Structural design	Piston gate valve	Reset method	Mechanical spring Pneumatic spring
Width dimension	10.5mm	Exhaust air function	With flow control option
Sealing principle	Soft	Mounting position	Any
Manual override	None	Type of control	Direct
Flow direction	Reversible with restrictions	Symbol	00992907
Lap	Overlap	Pilot pressure	2.5bar 10bar
Suitability for vacuum	no	Switching time off	11ms
On switching time	5ms	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 5 according to ISO 14644-1
Temperature of medium	-5°C 50°C	Pilot medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature	-5°C 60°C	Product weight	37g
Type of mounting	Optionally: On PR rail With through-hole	Pilot air port 12	M5
Pilot air port 14	M5	Pneumatic connection 1	M3
Pneumatic connection 2	M3	Pneumatic connection 3	M3
Pneumatic connection 4	M3	Pneumatic connection 5	M3
Note on materials	RoHS-compliant	Seals material	HNBR NBR
Housing material	Aluminum Anodized	Manufacturer ID	573795

Specifications may be subject to change without notice
