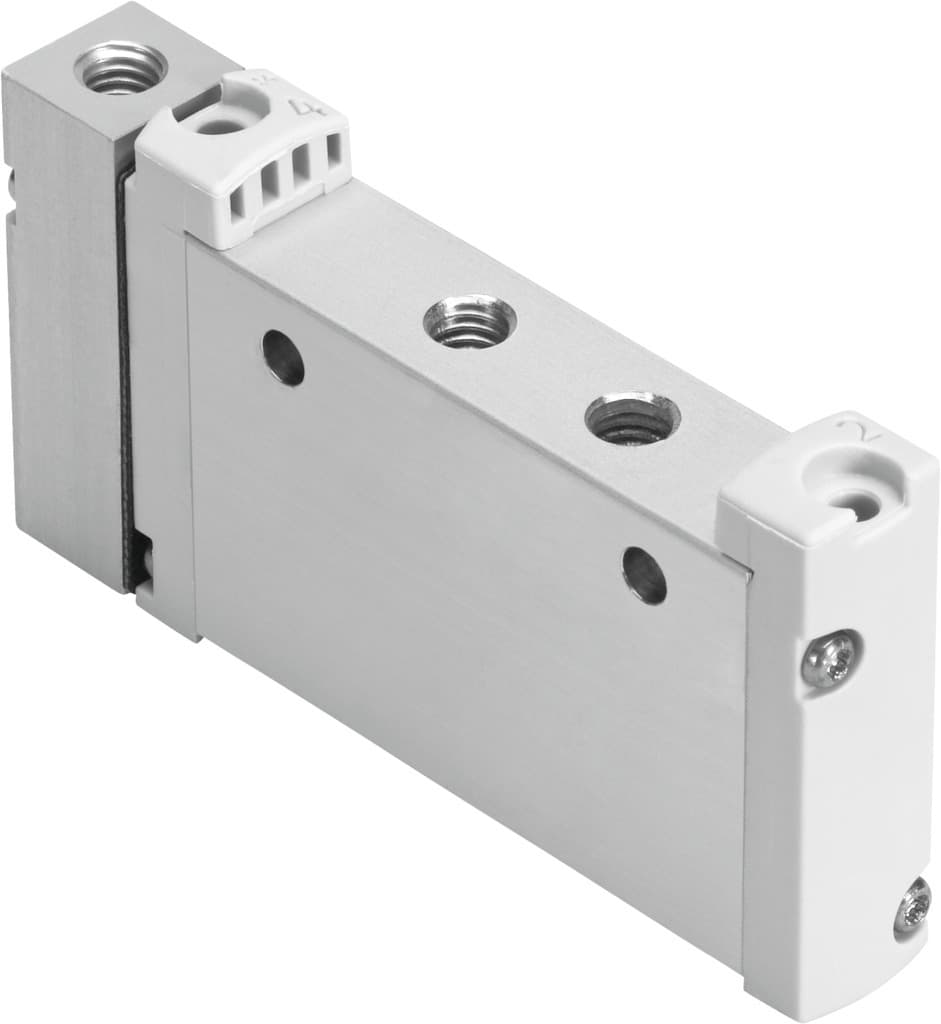

vuwg-l10-m52-m-m7
Product ID:14039
Updated: 2026/4/4
Key Features
- 1Operate at 320 l/min with a 5/2-way monostable function for precise control. 2、Integrate easily with 24V DC for efficient electric actuation. 3、Rely on durable piston gate valve design with mechanical spring reset. 4、Mount on manifold rails or through-holes for flexible system design. 5、Meet RCM and c UL us certifications for industry safety compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Pneumatic |
| Valve size | 10mm | Standard nominal flow rate | 320l/min |
| Pneumatic working port | M7 | Operating pressure | -0.9bar 8bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Width dimension | 10.5mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | None | Type of control | Direct |
| Flow direction | Reversible | Symbol | 00991029 |
| Lap | Overlap | Pilot pressure | 3bar 10bar |
| Suitability for vacuum | yes | Switching time off | 16ms |
| On switching time | 7ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 60°C | Product weight | 41g |
| Type of mounting | Optionally: On PR rail With through-hole | Pilot air port 12 | M5 |
| Pilot air port 14 | M5 | Pneumatic connection 1 | M7 |
| Pneumatic connection 2 | M7 | Pneumatic connection 3 | M7 |
| Pneumatic connection 4 | M7 | Pneumatic connection 5 | M7 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Aluminum Anodized | Manufacturer ID | 574258 |
Specifications may be subject to change without notice
