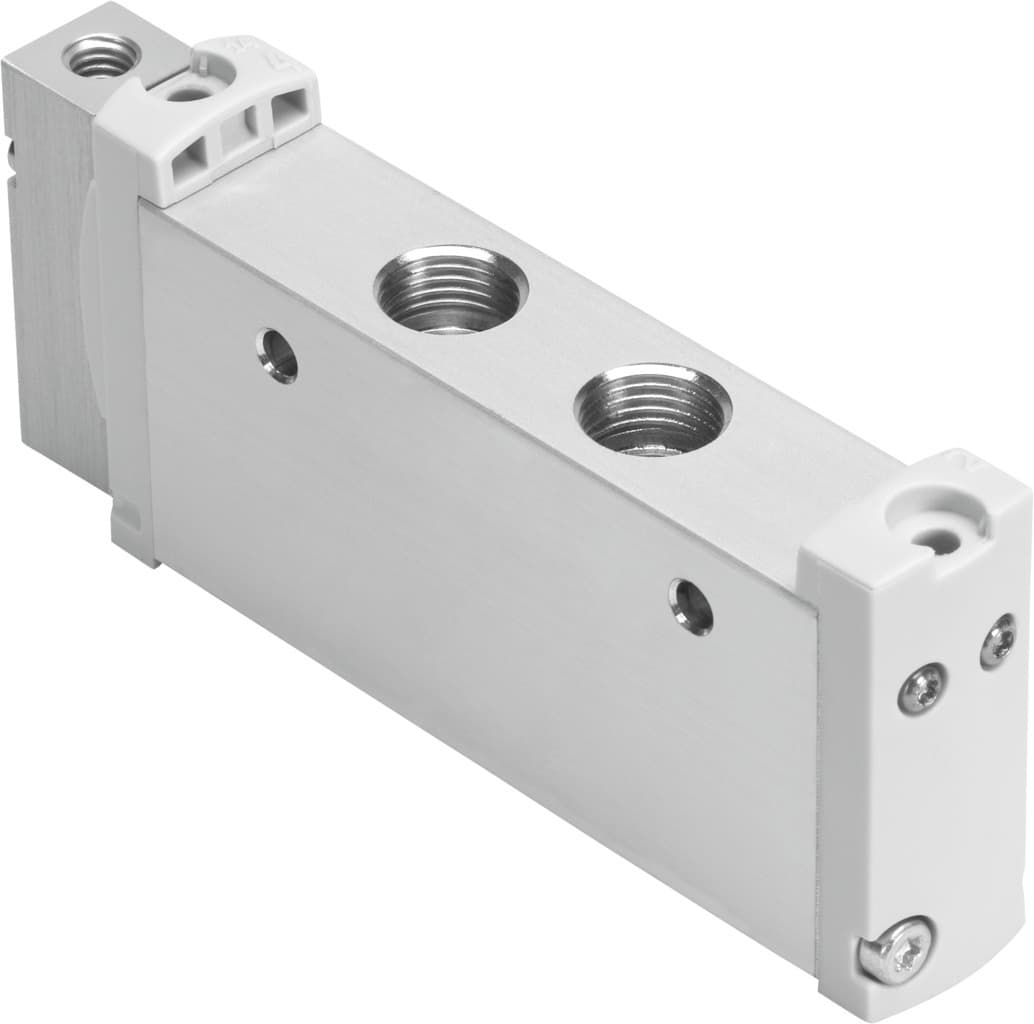

vuwg-l14-m52-m-g18

Product ID:14043

Updated: 2026/4/4

Key Features

1Control precisely with a 5/2-way monostable function. 2、Ensure reliable reset via piston gate and mechanical spring. 3、Maintain consistent performance using the soft sealing principle. 4、Install flexibly with manifold rail or through-hole mounting. 5、Meet strict standards with RoHS, HNBR/NBR seals, and anodized housing.

Detailed engineering parameters

Parameter	Value	Parameter	Value
Valve function	5/2, monostable	Actuation type	Pneumatic
Valve size	14mm	Standard nominal flow rate	780l/min
Pneumatic working port	G1/8	Operating pressure	-0.9bar 8bar
Structural design	Piston gate valve	Reset method	Mechanical spring
Width dimension	16mm	Exhaust air function	With flow control option
Sealing principle	Soft	Mounting position	Any
Manual override	None	Type of control	Direct
Flow direction	Reversible	Symbol	00991029
Lap	Overlap	Pilot pressure	3bar 10bar
Suitability for vacuum	yes	Switching time off	32ms
On switching time	12ms	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 5 according to ISO 14644-1
Temperature of medium	-5°C 50°C	Pilot medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature	-5°C 60°C	Product weight	67g
Type of mounting	Optionally: On PR rail With through-hole	Pilot air port 12	M5
Pilot air port 14	M5	Pneumatic connection 1	G1/8
Pneumatic connection 2	G1/8	Pneumatic connection 3	G1/8
Pneumatic connection 4	G1/8	Pneumatic connection 5	G1/8
Note on materials	RoHS-compliant	Seals material	HNBR NBR
Housing material	Aluminum Anodized	Manufacturer ID	574262

Specifications may be subject to change without notice
