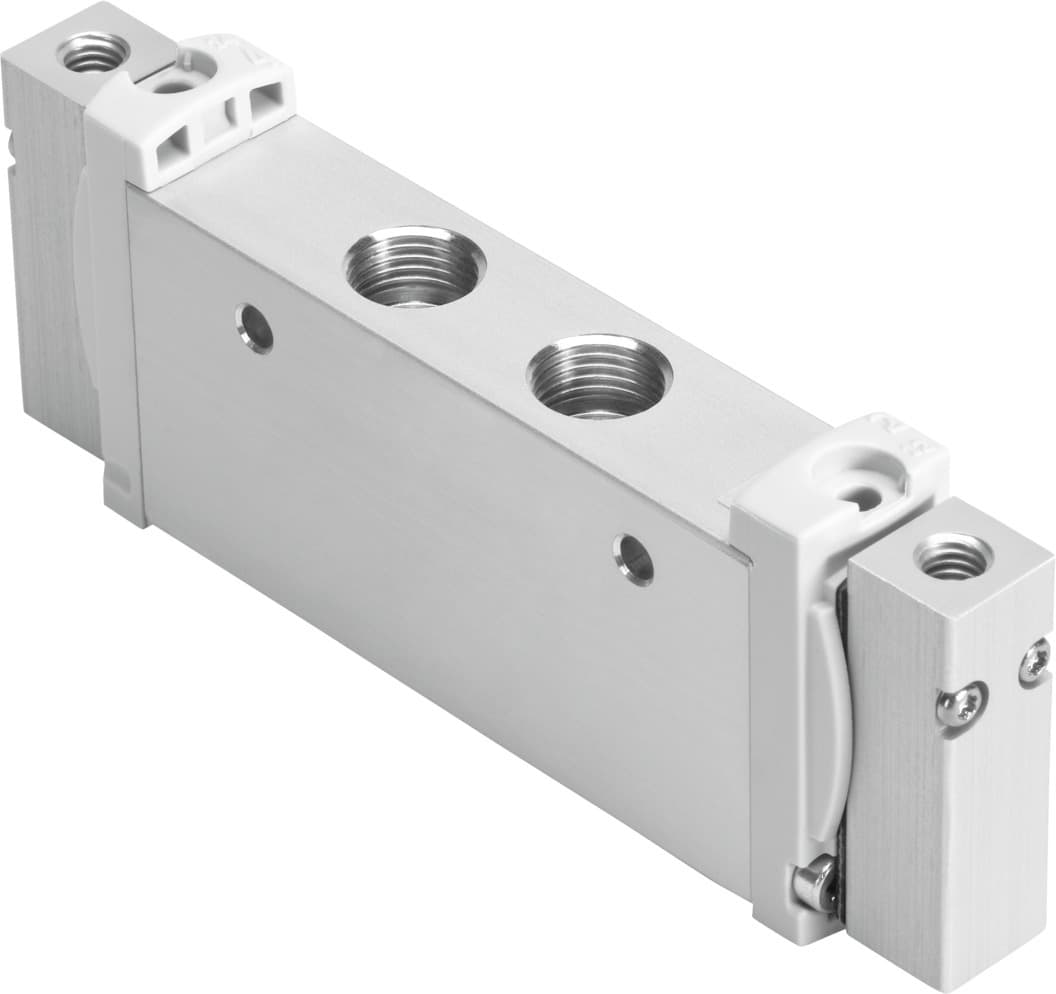

vuwg-l18-p53u-g14
Product ID:14055
Updated: 2026/4/4
Key Features
- 1Control fluid flow precisely with versatile 5/3-way pressurized operation. 2、Ensure system flexibility using reversible flow direction. 3、Reduce wear and tear via reliable soft sealing principle. 4、Achieve efficient control with a 1000 l/min nominal flow rate. 5、Save space in compact panels using the 18 mm valve design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, pressurized | Actuation type | Pneumatic |
| Valve size | 18mm | Standard nominal flow rate | 1000l/min |
| Pneumatic working port | G1/4 | Operating pressure | -0.9bar 10bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Width dimension | 19mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | None | Type of control | Direct |
| Flow direction | Reversible | Symbol | 00991022 |
| Lap | Indefinite overlap | Pilot pressure | 3bar 10bar |
| Suitability for vacuum | yes | Switching time off | 69ms |
| On switching time | 17ms | Changeover time | 34ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
| Product weight | 152g | Type of mounting | Optionally: On PR rail With through-hole |
| Pilot air port 12 | M5 | Pilot air port 14 | M5 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Aluminum Anodized |
| Manufacturer ID | 574274 |
Specifications may be subject to change without notice
