vuws-lt30-b52-n38
Product ID:15901
Updated: 2026/4/3
Key Features
- 1Achieve high flow rates up to 2300 l/min for efficient system performance. 2、Ensure durability with a robust poppet seat and soft sealing design. 3、Operate safely in hazardous areas with ATEX Zone 1, 2, 21, 22 certification. 4、Mount flexibly using optional manifold rail or through-hole options. 5、Meet environmental standards with RoHS-compliant HNBR, NBR, and TPE-U seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Pneumatic |
| Valve size | 31mm | Standard nominal flow rate | 1800l/min |
| Pneumatic working port | 3/8 NPT | Operating pressure | 1.5bar 10bar |
| Structural design | Plate seat | Certification | c UL us - Recognized (OL) |
| Nominal width | 8.7mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | None | Type of control | Direct |
| Pilot air supply port | Internal | Flow direction | Non-reversible |

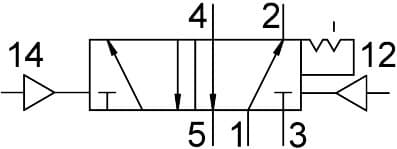

| Symbol | 00995840 | Lap | Underlap |
| Pilot pressure MPa | 0.15MPa 1MPa | Pilot pressure | 1.5bar 10bar |
| Changeover time | 13ms | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Product weight | 521g | Type of mounting | Optionally: On terminal strip With through-hole |
| Venting hole connection | Not ducted | Pilot air port 12 | 1/8 NPT |
| Pilot air port 14 | 1/8 NPT | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 2 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
| Pneumatic connection 4 | 3/8 NPT | Pneumatic connection 5 | 3/8 NPT |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR TPE-U(PU) |
| Housing material | Die cast aluminum, painted | Piston slide material | Wrought aluminum alloy |
| Material of screws | Steel, galvanized | Manufacturer ID | 8036728 |
Specifications may be subject to change without notice
