vuws-lt30-t32c-m-n38
Product ID:15903
Updated: 2026/7/15
Key Features
- 1Achieve high flow rates up to 1600 l/min for efficient system performance.
- 2Utilize reliable pneumatic actuation for precise and consistent control.
- 3Ensure safety in hazardous areas with full ATEX Zone 1, 2, 21, 22 compliance.
- 4Benefit from durable die-cast aluminum housing and galvanized steel screws.
- 5Rely on soft HNBR, NBR, and TPE-U seals for long-lasting, leak-free operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2x3/2, closed, monostable | Actuation type | Pneumatic |
| Valve size | 31mm | Standard nominal flow rate | 1600l/min |
| Pneumatic working port | 3/8 NPT | Operating pressure | 1bar 10bar |
| Structural design | Plate seat | Reset method | Mechanical spring |
| Certification | c UL us - Recognized (OL) | Nominal width | 7.9mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | None |
| Type of control | Direct | Pilot air supply port | Internal |

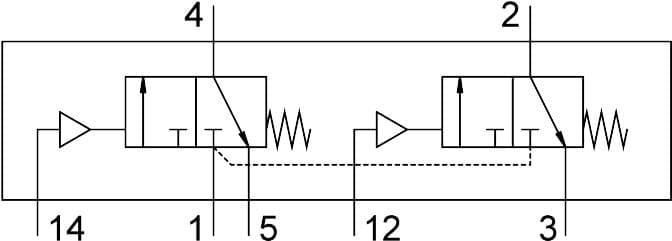

| Flow direction | Non-reversible | Symbol | 00995852 |
| Lap | Underlap | Pilot pressure MPa | 0.25MPa 1MPa |
| Pilot pressure | 2.5bar 10bar | Switching time off | 37ms |
| On switching time | 12ms | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Product weight | 515g | Type of mounting | Optionally: On terminal strip With through-hole |
| Venting hole connection | Not ducted | Pilot air port 12 | 1/8 NPT |
| Pilot air port 14 | 1/8 NPT | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 2 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
| Pneumatic connection 4 | 3/8 NPT | Pneumatic connection 5 | 3/8 NPT |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR TPE-U(PU) |
| Housing material | Die cast aluminum, painted | Piston slide material | POM |
| Material of screws | Steel, galvanized | Manufacturer ID | 8036730 |
Specifications may be subject to change without notice
