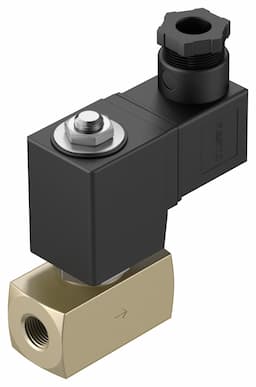

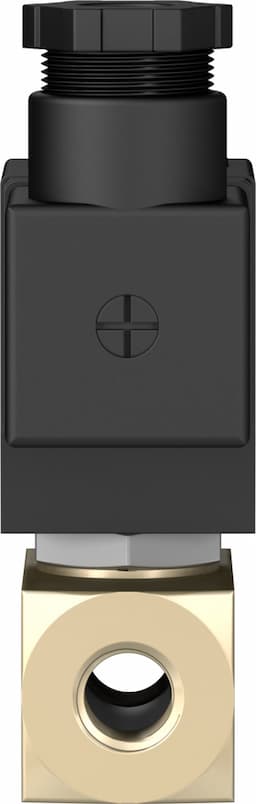

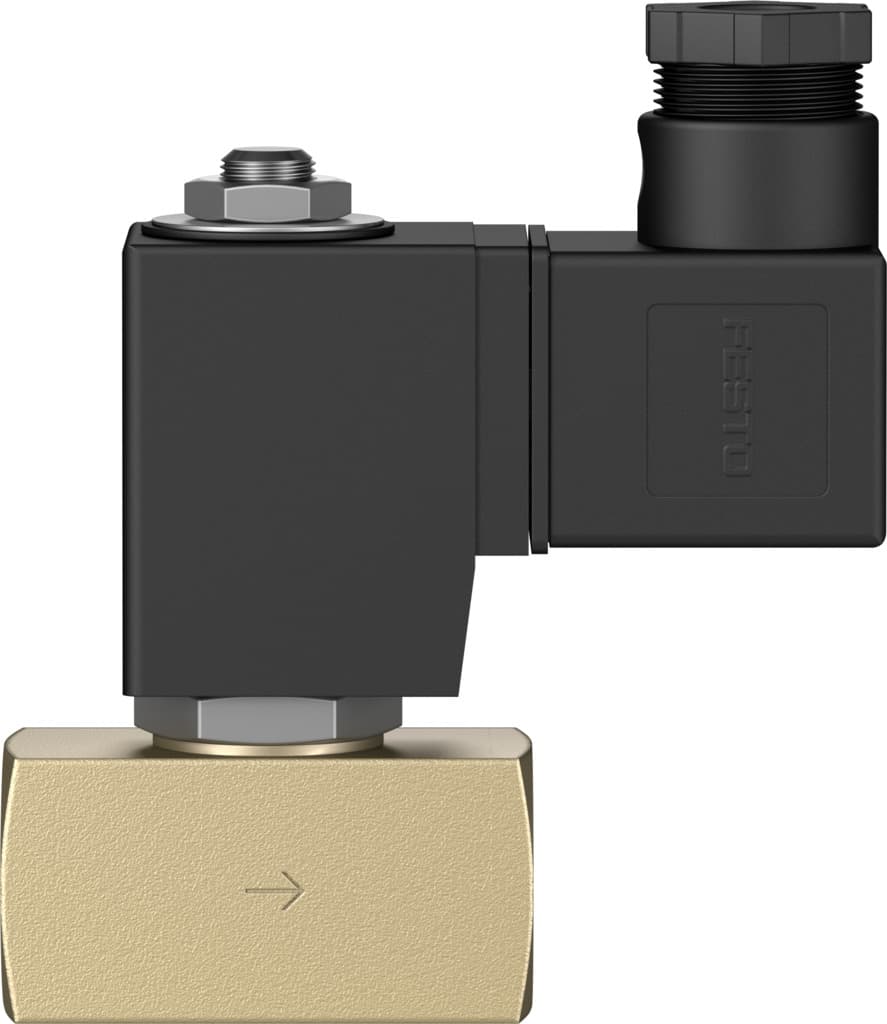

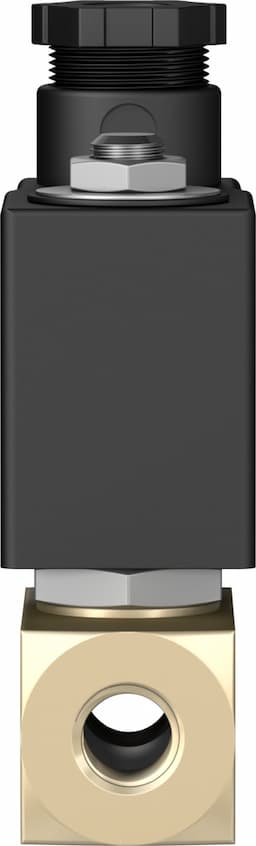

vzwd-l-m22c-m-g14-15-v-1p4-30
Product ID:1665
Updated: 2026/7/4
Key Features
- 1Control compressed air reliably with this 2/2-way solenoid valve.
- 2Achieve up to 15 bar pressure difference for demanding applications.
- 3Integrate easily using the standard G1/4 in-line port connection.
- 4Operate efficiently with a 24V DC coil consuming 11.0 W.
- 5Ensure system longevity with the soft-sealing and spring reset mechanism.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Directly controlled poppet valve | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Any |
| Type of mounting | Line installation | Fitting connection | G1/4 |
| Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 1.5mm |
| Valve function | 2/2, closed, monostable | Manual override | None |
| Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
| Nominal pressure of fitting PN | 50 | Pressure difference | 0psi |
| Differential pressure | 0bar | Coil characteristics | 24 V DC: 6.8 W |
| Insulation class | H | Permissible voltage fluctuations | +/- 10 % |
| Duty cycle | 100% | Reset method | Mechanical spring |
| Type of control | Direct | Symbol | 00992979 |
| Medium pressure | 0psi 435psi | Max. viscosity | 22mm2/s |
| Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
| Leak rate to EN 12266-1 | A | Flow rate Kv | 0.09m3/h |
| Standard nominal flow rate | 95l/min | On switching time | 25ms |
| Switching time off | 10ms | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Brass |
| Material number of housing | CW614N | Seals material | FPM |
| Product weight | 350g | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Manufacturer ID | 1491829 |
Specifications may be subject to change without notice
