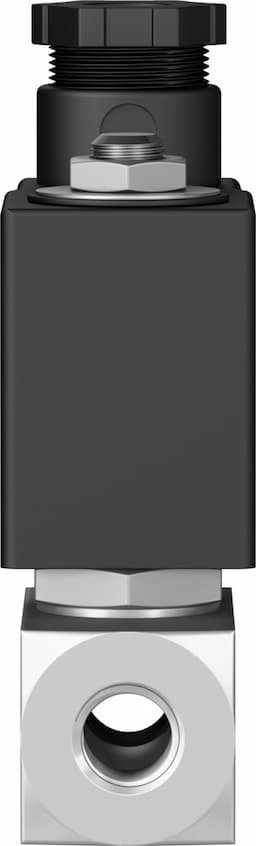

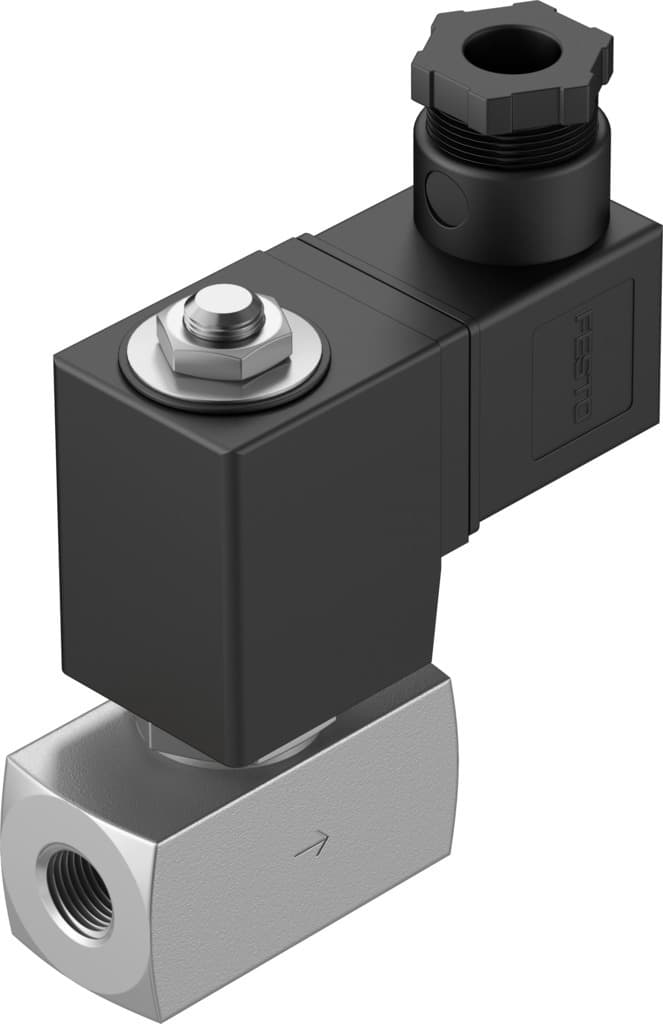

vzwd-l-m22c-m-g14-50-v-1p4-5-r1
Product ID:1698
Updated: 2026/7/4
Key Features
- 1Control compressed air flow precisely with 2/2-way, closed, monostable operation.
- 2Ensure reliable and durable performance via an electric actuation with soft mounting.
- 3Handle various media including inert gases and neutral fluids per ISO 8573-1:2010.
- 4Manage high-pressure applications with a nominal pressure of PN 50.
- 5Integrate easily into systems with 24 V DC, 6.8 W characteristic coil data.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Directly controlled poppet valve | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Any |
| Type of mounting | Line installation | Fitting connection | G1/4 |
| Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 5mm |
| Valve function | 2/2, closed, monostable | Manual override | None |
| Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
| Nominal pressure of fitting PN | 100 | Pressure difference | 0psi |
| Differential pressure | 0bar | Coil characteristics | 24 V DC: 11.0 W |
| Insulation class | H | Permissible voltage fluctuations | +/- 10 % |
| Duty cycle | 100% | Reset method | Mechanical spring |
| Type of control | Direct | Symbol | 00992979 |
| Medium pressure | 0psi 72.5psi | Max. viscosity | 22mm2/s |
| Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
| Leak rate to EN 12266-1 | A | Flow rate Kv | 0.35m3/h |
| Standard nominal flow rate | 375l/min | On switching time | 20ms |
| Switching time off | 18ms | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III | Housing material | High-alloy stainless steel |
| Material number of housing | 1.4305 | Seals material | FPM |
| Product weight | 650g | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1491862 |
Specifications may be subject to change without notice
