In Stock

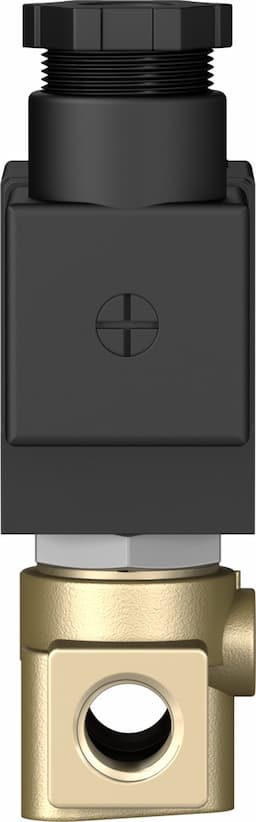

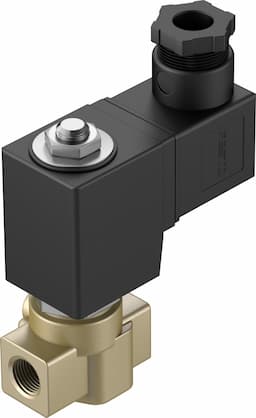

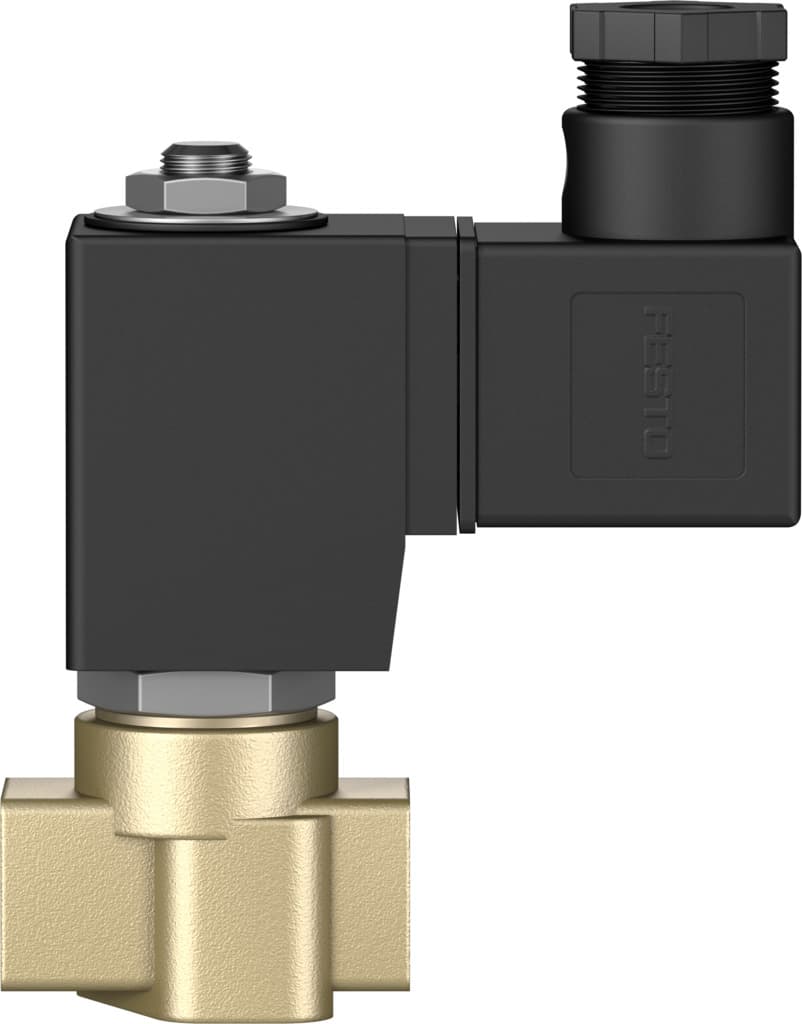

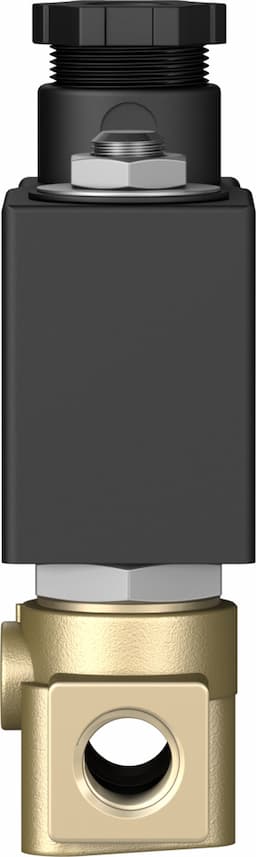

vzwd-l-m22c-m-g18-15-v-1p4-85

Product ID:1669

Updated: 2026/4/3

Key Features

1Achieve precise control for efficient industrial automation. 2、Ensure reliable performance with brass housing and PN 50 rating. 3、Integrate easily using compact, standardized dimensions. 4、Minimize energy consumption with stable 24 V DC operation. 5、Select from Festo's comprehensive range for your application.

Detailed engineering parameters

Parameter	Value	Parameter	Value
Structural design	Directly controlled poppet valve	Actuation type	Electrical
Sealing principle	Soft	Mounting position	Any
Type of mounting	Line installation	Fitting connection	G1/8
Electrical connection	Form A Plug as per EN 175301-803 Rectangular design	Nominal width	1.5mm
Valve function	2/2, closed, monostable	Manual override	None
Flow direction	Non-reversible	Medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Mineral oil Water Neutral liquids Other flow media on request
Nominal pressure of fitting PN	100	Pressure difference	0psi
Differential pressure	0bar	Coil characteristics	24 V DC: 11.0 W
Insulation class	H	Permissible voltage fluctuations	+/- 10 %
Duty cycle	100%	Reset method	Mechanical spring
Type of control	Direct	Symbol	00992979
Medium pressure	0psi 1232.5psi	Max. viscosity	22mm2/s
Temperature of medium	-10°C 80°C	Ambient temperature	-10°C 35°C
Leak rate to EN 12266-1	A	Flow rate Kv	0.09m3/h
Standard nominal flow rate	95l/min	On switching time	20ms
Switching time off	18ms	Note on materials	RoHS-compliant
LABS (PWIS) conformity	VDMA24364 zone III	Housing material	Cast brass
Material number of housing	CW617N	Seals material	FPM
Product weight	550g	Degree of protection	IP65
Corrosion resistance class (CRC)	1 - Low corrosion stress	Manufacturer ID	1491833

Specifications may be subject to change without notice
