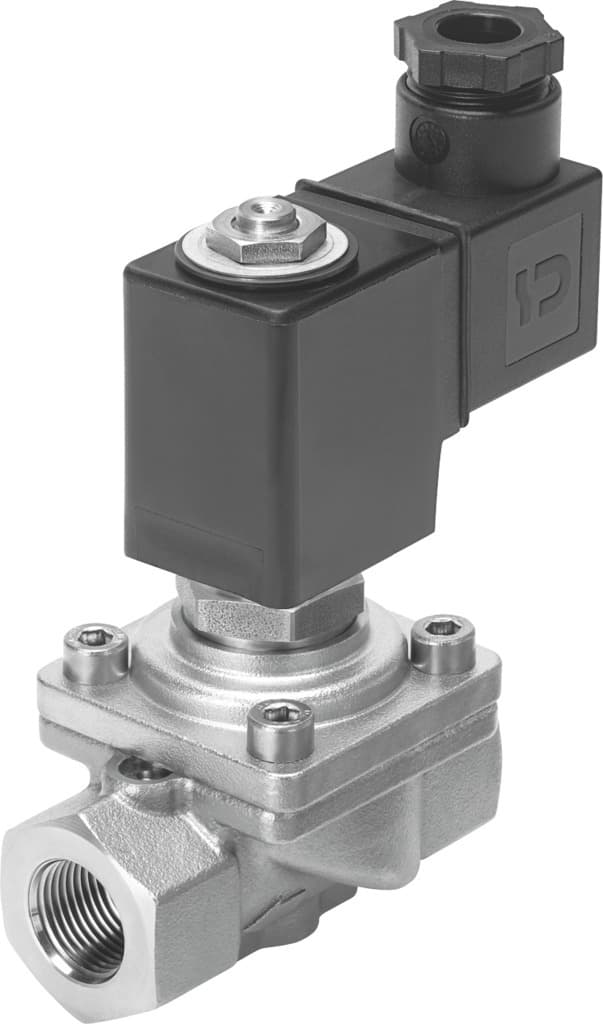

vzwf-b-l-m22c-n38-135-e-3ap4-10-r1
Product ID:2160
Updated: 2026/4/3
Key Features
- 1Ensure precise control with force pilot operation and soft sealing. 2、Handle diverse media like compressed air, oil, and water. 3、Operate reliably at PN 40 with +/-10% voltage tolerance. 4、Integrate easily using cubic design per EN 175301-803 standard. 5、Withstand harsh conditions with IP65 protection and CE mark.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Diaphragm valve Force pilot operated | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Magnet, upright |
| Type of mounting | Line installation | Fitting connection | 3/8 NPT |
| Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 13.5mm |
| Valve function | 2/2, closed, monostable | Manual override | None |
| Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
| Nominal pressure of fitting PN | 40 | Pressure difference | 0psi |
| Differential pressure | 0bar | Coil characteristics | 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA |
| Permissible voltage fluctuations | +/- 10 % | Symbol | 00992976 |
| Medium pressure | 0psi 145psi | Max. viscosity | 22mm2/s |
| Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
| Leak rate to EN 12266-1 | A | Flow rate Kv | 2.2m3/h |
| Standard nominal flow rate | 2350l/min | On switching time | 130ms |
| Switching time off | 180ms | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast stainless steel |
| Material number of housing | 1.4581 | Seals material | EPDM |
| Material of screws | High-alloy stainless steel | Material number of screw | 1.4301 |
| Product weight | 1000g | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1492375 |
Specifications may be subject to change without notice
