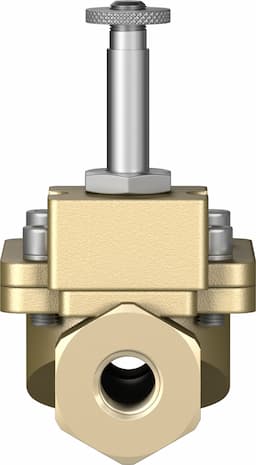

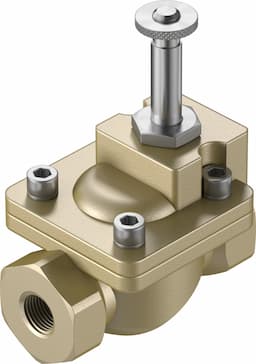

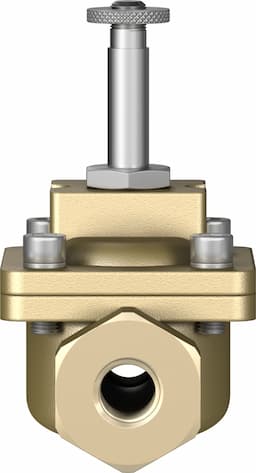

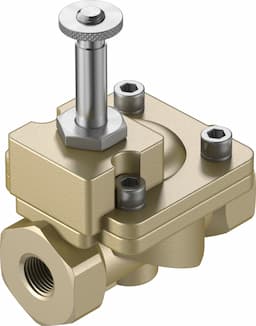

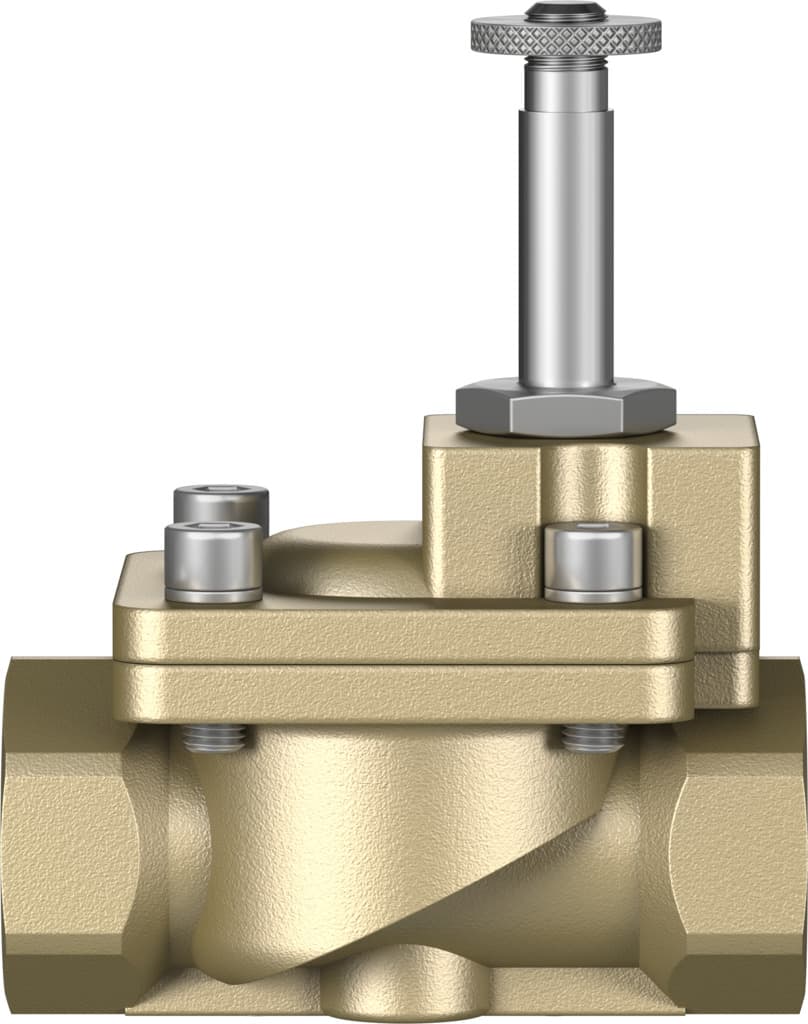

vzwm-l-m22c-g14-f4
Product ID:11086
Updated: 2026/4/3
Key Features
- 1Deliver a high nominal flow rate of 1400 l/min for efficient system operation. 2、Achieve rapid response with an on-switching time of just 8 ms. 3、Ensure reliable performance in demanding industrial automation environments. 4、Integrate seamlessly into universal or application-specific valve manifolds. 5、Reduce maintenance needs and downtime with a robust, long-life design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Diaphragm valve servo-controlled | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Preferably upright |
| Type of mounting | Line installation | Fitting connection | G1/4 |
| Electrical connection | Solenoid coil type MD-... , coil can be ordered as an accessory | Nominal width | 13.5mm |
| Valve function | 2/2, closed, monostable | Flow direction | Non-reversible |
| Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Water Neutral liquids | Medium pressure of liquid media | 0.5bar 6bar |
| Medium pressure of gaseous media | 0.5bar 10bar | Differential pressure | 0.5bar |
| Type of control | Pilot-controlled | Symbol | 00995681 |
| Max. viscosity | 22mm2/s | Temperature of medium | -10°C 60°C |
| Temperature of liquid media | 5°C 50°C | Ambient temperature | -10°C 60°C |
| Flow rate Kv | 1.6m3/h | Standard nominal flow rate | 1400l/min |
| On switching time | 8ms | Response time "on" for liquid media | 100ms |
| Switching time off | 10ms | Response time "off" for liquid media | 200ms |
| b-value | 0.3 | C value | 6l/sbar |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364 zone III |
| Housing material | Brass | Material number of housing | 2.0402 |
| Seals material | NBR | Armature tube material | High-alloy steel |
| Product weight | 500g | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Max. torque for cover screw | 20Nm | Max. tightening torque for connecting thread | 35Nm |
| Max. tightening torque for coil fastening | 0.5Nm | Manufacturer ID | 546146 |
Specifications may be subject to change without notice
