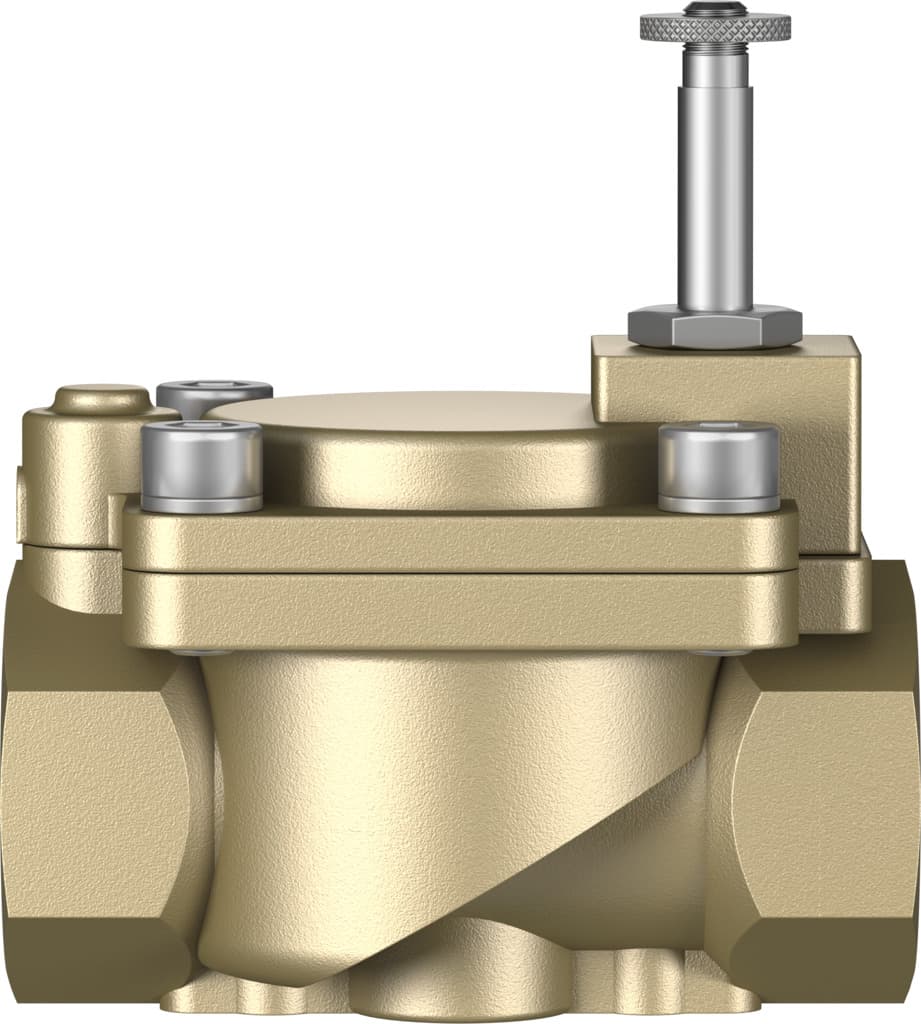

vzwm-l-m22c-g1-f4
Product ID:11090
Updated: 2026/4/3
Key Features
- 1Ensure reliable 24/7 operation in demanding automation systems. 2、Achieve precise fluid control with servo-pneumatic actuation technology. 3、Reduce maintenance costs with a robust 20-million-cycle lifespan design. 4、Simplify integration into existing panels with a compact form factor. 5、Optimize ROI with fast shipping and available customization options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Diaphragm valve servo-controlled | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Preferably upright |
| Type of mounting | Line installation | Fitting connection | G1 |
| Electrical connection | Solenoid coil type MD-... , coil can be ordered as an accessory | Nominal width | 27.5mm |
| Valve function | 2/2, closed, monostable | Flow direction | Non-reversible |
| Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Water Neutral liquids | Medium pressure of liquid media | 0.5bar 6bar |
| Medium pressure of gaseous media | 0.5bar 10bar | Differential pressure | 0.5bar |
| Type of control | Pilot-controlled | Symbol | 00995681 |
| Max. viscosity | 22mm2/s | Temperature of medium | -10°C 60°C |
| Temperature of liquid media | 5°C 50°C | Ambient temperature | -10°C 60°C |
| Flow rate Kv | 10.7m3/h | Standard nominal flow rate | 11700l/min |
| On switching time | 15ms | Response time "on" for liquid media | 400ms |
| Switching time off | 12ms | Response time "off" for liquid media | 750ms |
| b-value | 0.57 | C value | 41l/sbar |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364 zone III |
| Housing material | Brass | Material number of housing | 2.0402 |
| Seals material | NBR | Armature tube material | High-alloy steel |
| Product weight | 1200g | CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Max. torque for cover screw | 30Nm | Max. tightening torque for connecting thread | 350Nm |
| Max. tightening torque for coil fastening | 0.5Nm | Manufacturer ID | 546150 |
Specifications may be subject to change without notice
