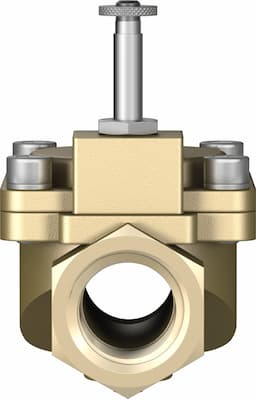

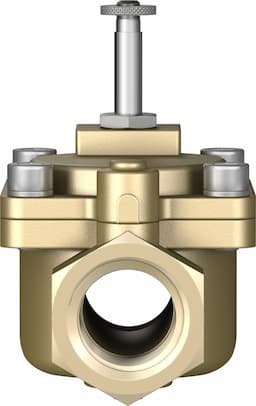

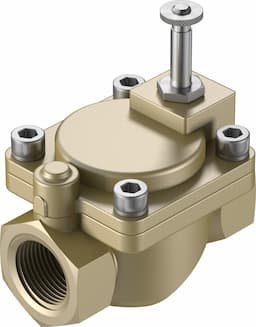

vzwm-l-m22c-g2-f5
Product ID:11093
Updated: 2026/4/3
Key Features
- 1Achieve precise control in automation with the VZWM-L-M22C-G2-F5. 2、Reduce maintenance via reliable electric actuation. 3、Ensure secure integration with G2 pipe connections. 4、Extend service life using soft-sealing diaphragm design. 5、Handle multiple media like air, water, and neutral fluids.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Diaphragm valve servo-controlled | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Preferably upright |
| Type of mounting | Line installation | Fitting connection | G2 |
| Electrical connection | Solenoid coil type MH-... , coil can be ordered as an accessory | Nominal width | 50mm |
| Valve function | 2/2, closed, monostable | Flow direction | Non-reversible |
| Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Water Neutral liquids | Medium pressure of liquid media | 0.7bar 6bar |
| Medium pressure of gaseous media | 0.7bar 10bar | Differential pressure | 0.7bar |
| Type of control | Pilot-controlled | Symbol | 00995681 |
| Max. viscosity | 22mm2/s | Temperature of medium | -10°C 60°C |
| Temperature of liquid media | 5°C 50°C | Ambient temperature | -10°C 60°C |
| Flow rate Kv | 39m3/h | Standard nominal flow rate | 31000l/min |
| On switching time | 62ms | Response time "on" for liquid media | 2100ms |
| Switching time off | 21ms | Response time "off" for liquid media | 2800ms |
| b-value | 0.68 | C value | 110l/sbar |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364 zone III |
| Housing material | Brass | Material number of housing | 2.0402 |
| Seals material | NBR | Armature tube material | High-alloy steel |
| Product weight | 3800g | CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Max. torque for cover screw | 30Nm | Max. tightening torque for connecting thread | 620Nm |
| Max. tightening torque for coil fastening | 2Nm | Manufacturer ID | 546153 |
Specifications may be subject to change without notice
