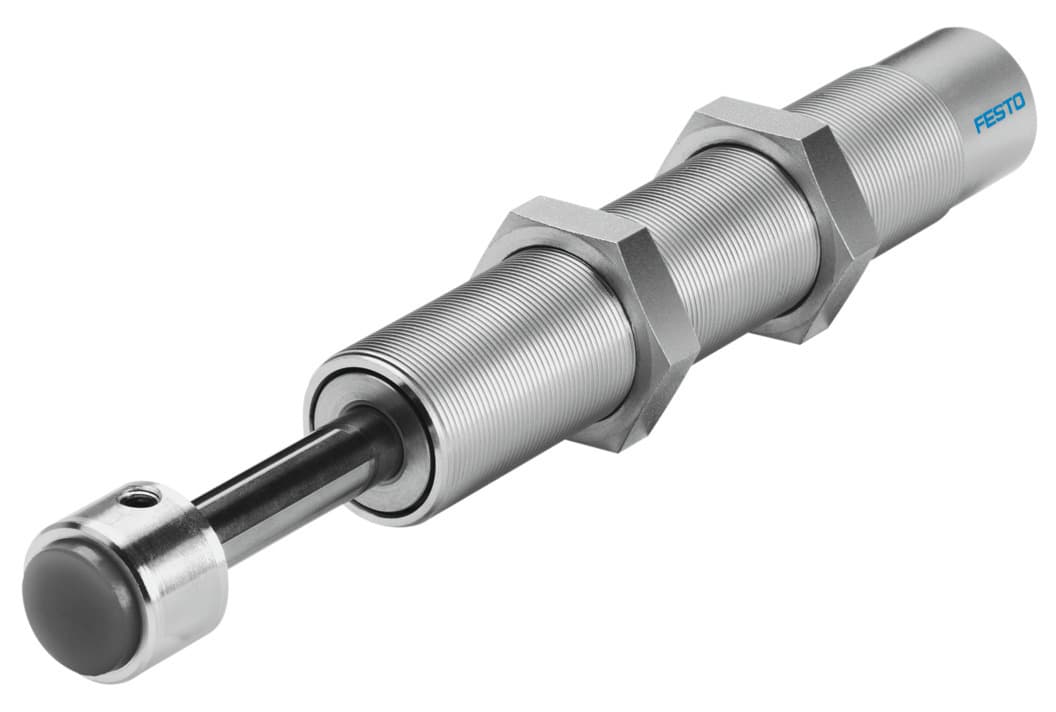

ysr-32-60-c
Product ID:4018
Updated: 2026/7/6
Key Features
- 1Feature self-adjusting cushioning for maximum shock absorption.
- 2Utilize galvanized steel for high corrosion resistance.
- 3Operate effectively from -10°C to +80°C.
- 4Handle heavy-duty applications with a 6000 N stop force.
- 5Ensure longer service life with regular lubrication.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 60mm |
| Cushioning | Self-adjusting | Mounting position | Any |
| Position sensing | None | Symbol | 00991497 |
| Max. impact velocity | 3m/s | Reset time at room temperature | 0.5s |
| Reset time at min. ambient temperature | 1s | Mode of operation | Pushing Single-acting |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 80°C | Cushioning length | 60mm |
| Max. stop force | 6000N | Max. energy absorption per stroke | 380J |
| Max. energy absorption per hour | 220000J | Max. residual energy | 2J |
| Resetting force | 20N | Min. insertion force | 160N |
| Product weight | 1220g | Load range | 400kg |
| Type of mounting | With lock nut | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Steel, galvanized |
| Piston rod material | High-alloy steel | Manufacturer ID | 160274 |
Specifications may be subject to change without notice
