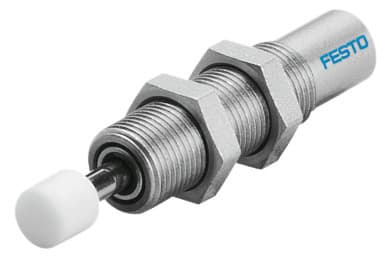

ysr-7-5-c
Product ID:4016
Updated: 2026/4/3
Key Features
- 1Ensure optimal performance with self-adjusting cushioning. 2、Fit into tight spaces with a compact 7mm size. 3、Resist moderate corrosion in stressful environments. 4、Handle high-velocity impacts up to 3 m/s. 5、Mount in any position for flexible system integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 7 | Stroke | 5mm |
| Cushioning | Self-adjusting | Mounting position | Any |
| Position sensing | None | Symbol | 00991497 |
| Max. impact velocity | 3m/s | Reset time at room temperature | 0.2s |
| Reset time at min. ambient temperature | 1s | Mode of operation | Pushing Single-acting |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 80°C | Cushioning length | 5mm |
| Max. stop force | 300N | Max. energy absorption per stroke | 2J |
| Max. energy absorption per hour | 12000J | Max. residual energy | 0.01J |
| Resetting force | 1.2N | Min. insertion force | 10N |
| Product weight | 16g | Load range | 5kg |
| Type of mounting | With lock nut | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | High-alloy steel |
| Piston rod material | High-alloy steel | Manufacturer ID | 160272 |
Specifications may be subject to change without notice
