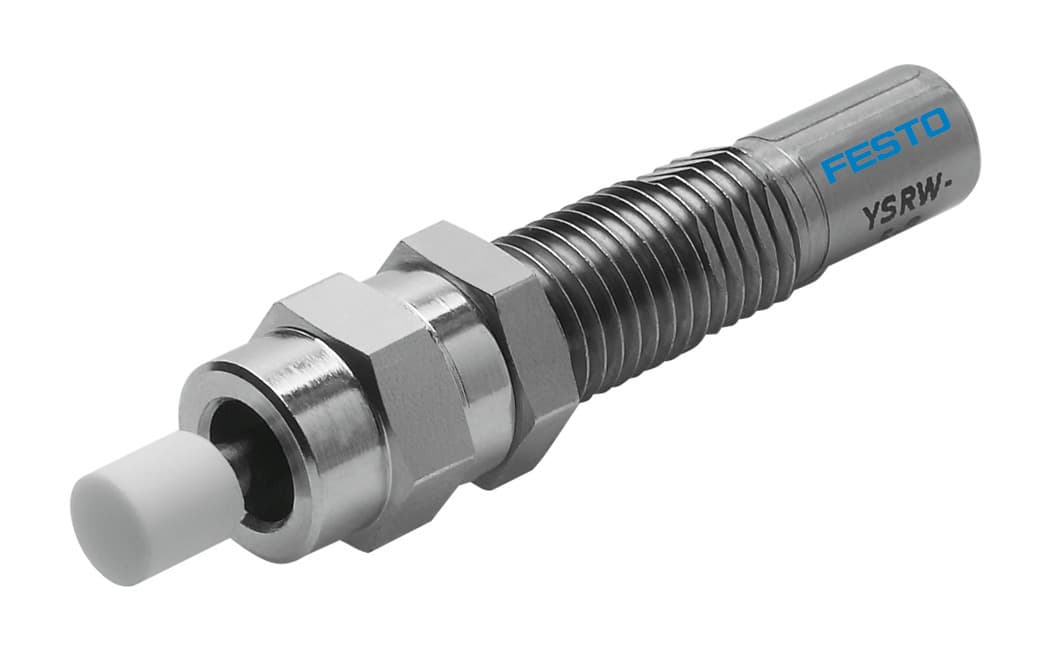

ysrw-dgc-40/50-b
Product ID:860
Updated: 2026/4/4
Key Features
- 1Offer self-adjusting cushioning for optimal performance. 2、Provide flexible optional mounting positions for easy integration. 3、Enhance stability and durability of DGC and DGCI linear drives. 4、Operate at a maximum impact speed of 3 m/s. 5、Construct from high alloy steel, conforming to RoHS standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 50 | Cushioning | Self-adjusting Soft characteristic curve |
| Mounting position | Any | Position sensing | None |
| Symbol | 00991497 | Max. impact velocity | 3m/s |
| Mode of operation | Pushing Single-acting | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 80°C |
| Type of mounting | With lock nut | Note on materials | RoHS-compliant |
| Piston rod material | High-alloy steel | Manufacturer ID | 1232870 |
Specifications may be subject to change without notice
