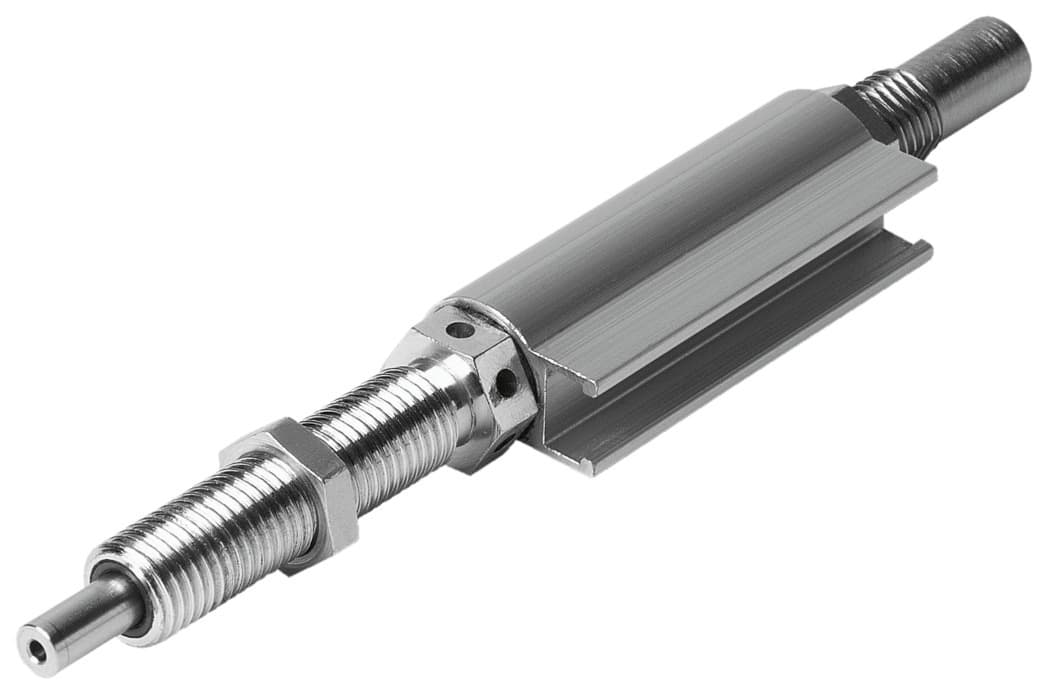

ysrwj-7-10-a
Product ID:7252
Updated: 2026/7/19
Key Features
- 1Provide self-adjusting cushioning with a soft characteristic curve.
- 2Handle up to 300 N stop force and 2.5 J per cycle.
- 3Operate reliably from -10°C to 80°C.
- 4Construct with high-alloy steel and NBR seals.
- 5Offer optional mounting positions for integration flexibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 7 | Stroke | 10mm |
| Cushioning | Self-adjusting Soft characteristic curve | Mounting position | Any |
| Precision adjustment | 0.03mm | Position sensing | For proximity sensor |
| Max. impact velocity | 3m/s | Reset time at room temperature | 0.2s |
| Reset time at min. ambient temperature | 1s | Mode of operation | Pushing Single-acting |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0°C 60°C | Cushioning length | 10mm |
| Max. stop force | 300N | Max. energy absorption per stroke | 2J |
| Max. energy absorption per hour | 15000J | Max. residual energy | 0.01J |
| Resetting force | 1.7N | Product weight | 75g |
| Type of mounting | With lock nut | Seals material | NBR |
| Housing material | Brass Nickel-plated | Piston rod material | High-alloy steel |
| Manufacturer ID | 192967 |
Specifications may be subject to change without notice
