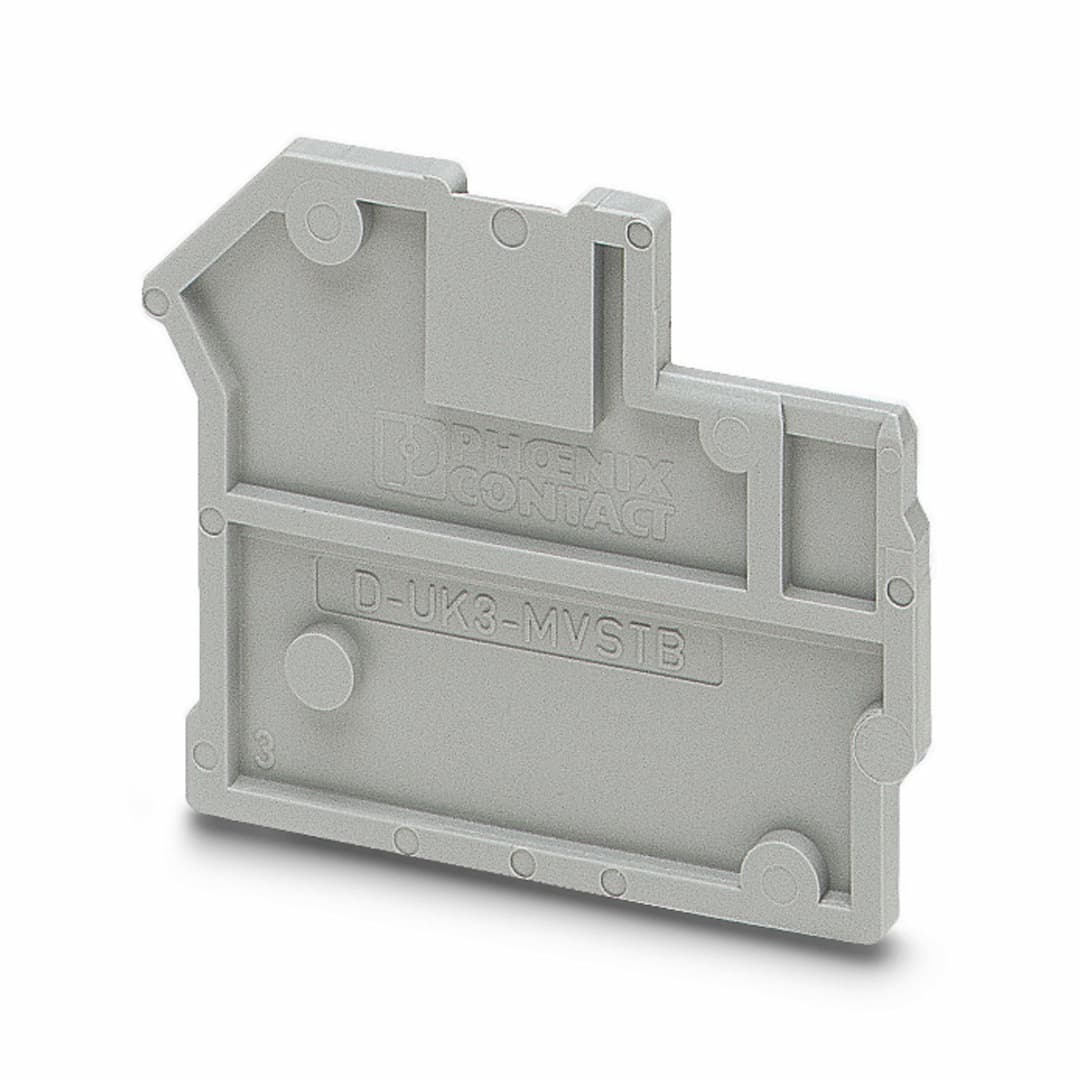

D-UK 3-MVSTB
Product ID:17520
Updated: 2026/8/4
Key Features
- 1Designed for use with DIN rail terminal blocks.
- 2Ideal for industrial applications.
- 3Durable construction ensures long-lasting performance.
- 4Easy installation with screw/plug-in connections.
- 5Compatible with 250V, 12A maximum rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | End cover | Product family | DECKEL + RZ + DP |
| Number of positions | 1 | Pitch | 0 mm |
| Article revision | 02 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Color | gray (RAL 7042) |
| Material | PA | Flammability rating according to UL 94 | V2 |
| Width | 2.5 mm | Height | 48 mm |
| Depth | 47 mm | Pitch | 0 mm |
Specifications may be subject to change without notice
