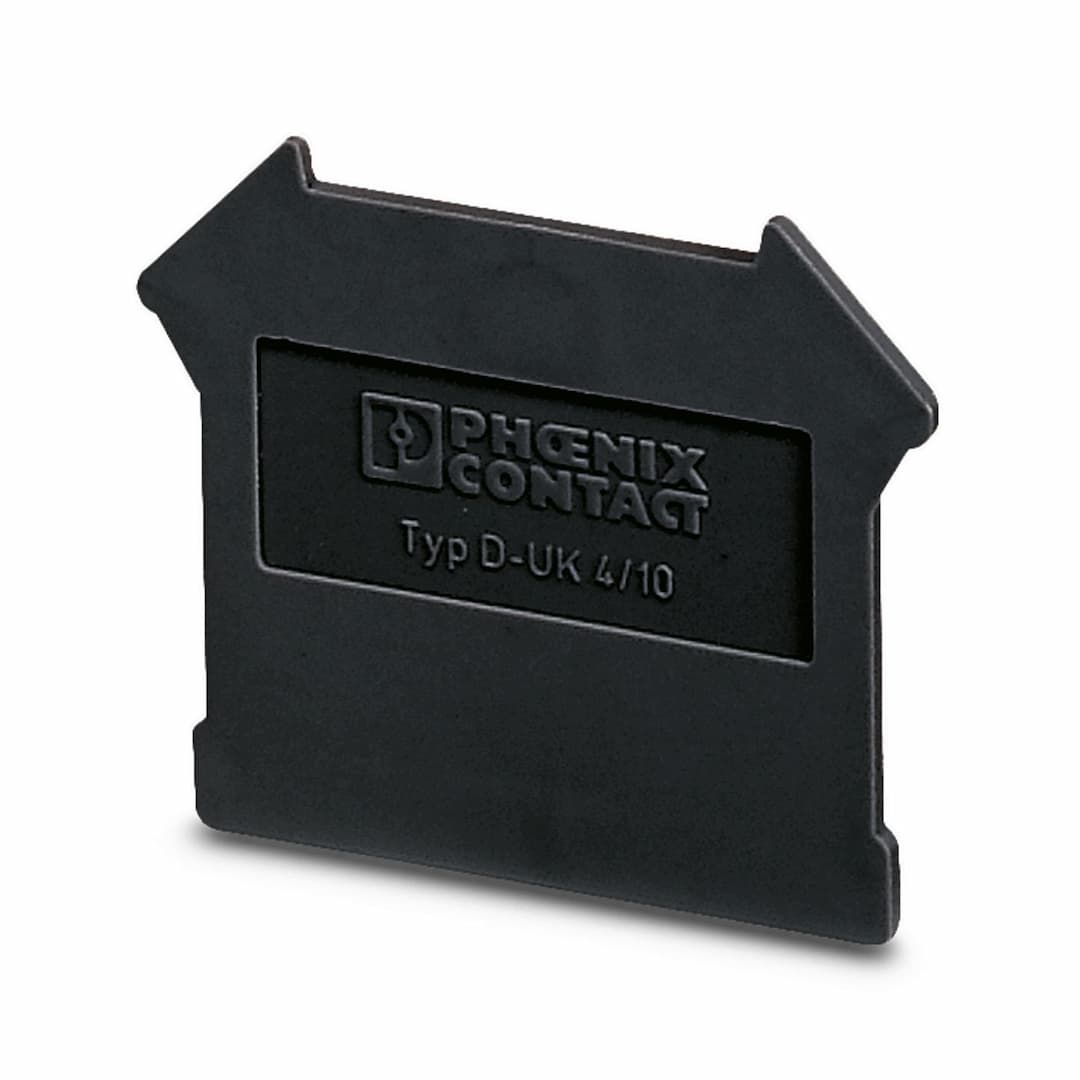

D-UK 4/10 BK
Product ID:18029
Updated: 2026/8/4
Key Features
- 1Made from high-quality PA 6.6 material, ensuring long-lasting performance.
- 2Static insulating material application, suitable for cold environments up to -60 °C.
- 3Meets UL 94 V0 flammability rating, ensuring safety in critical applications.
- 4Available in gray (RAL 7042), providing a professional and consistent appearance.
- 5Compatible with DIN Rail Terminal Blocks, ideal for various industrial electrical connections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | End cover | Article revision | 02 |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Color | black (RAL 9005) | Flammability rating according to UL 94 | V0 |
| Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Width | 1.8 mm |
Specifications may be subject to change without notice
