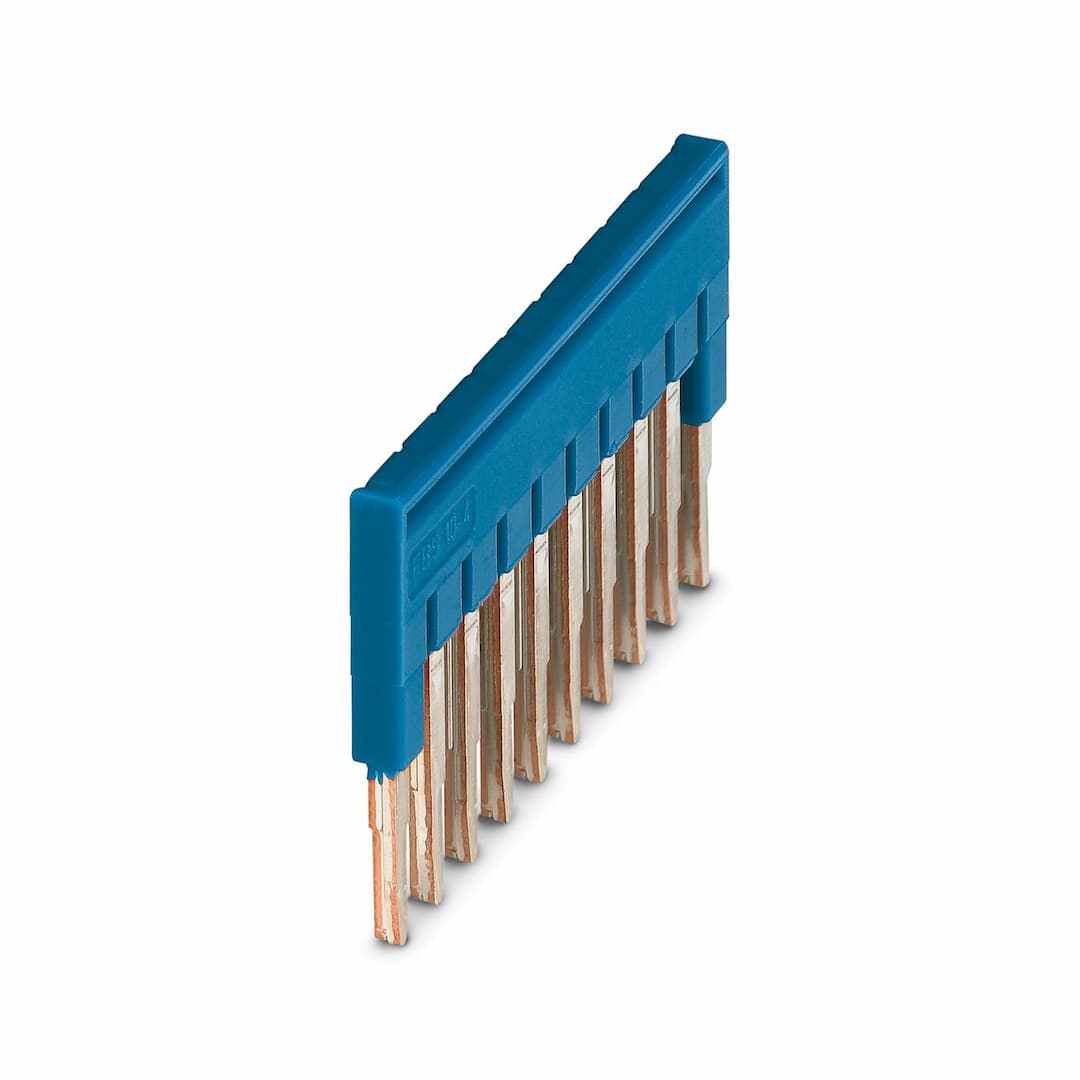

FBS 10-4 BU
Product ID:17907
Updated: 2026/7/12
Key Features
- 1Effortless Terminal Block Connection: The FBS 10-4 BU plug-in bridge connects up to 50 terminal blocks in one step, simplifying your wiring process.
- 2Durable Construction: Made from high-quality copper with a PA insulating material, ensuring long-lasting performance in various ambient conditions.
- 3Customizable Options: Available in different pitches and colors, including blue and gray, to match your specific needs.
- 4High Load Capacity: Supports a maximum load current of 17.5 A, making it suitable for demanding applications.
- 5Easy Installation: Features plug-in mounting for quick and secure installation, reducing setup time and effort.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 10 |
| Pitch | 4.2 mm | Article revision | 03 |
| Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Pitch | 4.2 mm | Color | blue (RAL 5015) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
