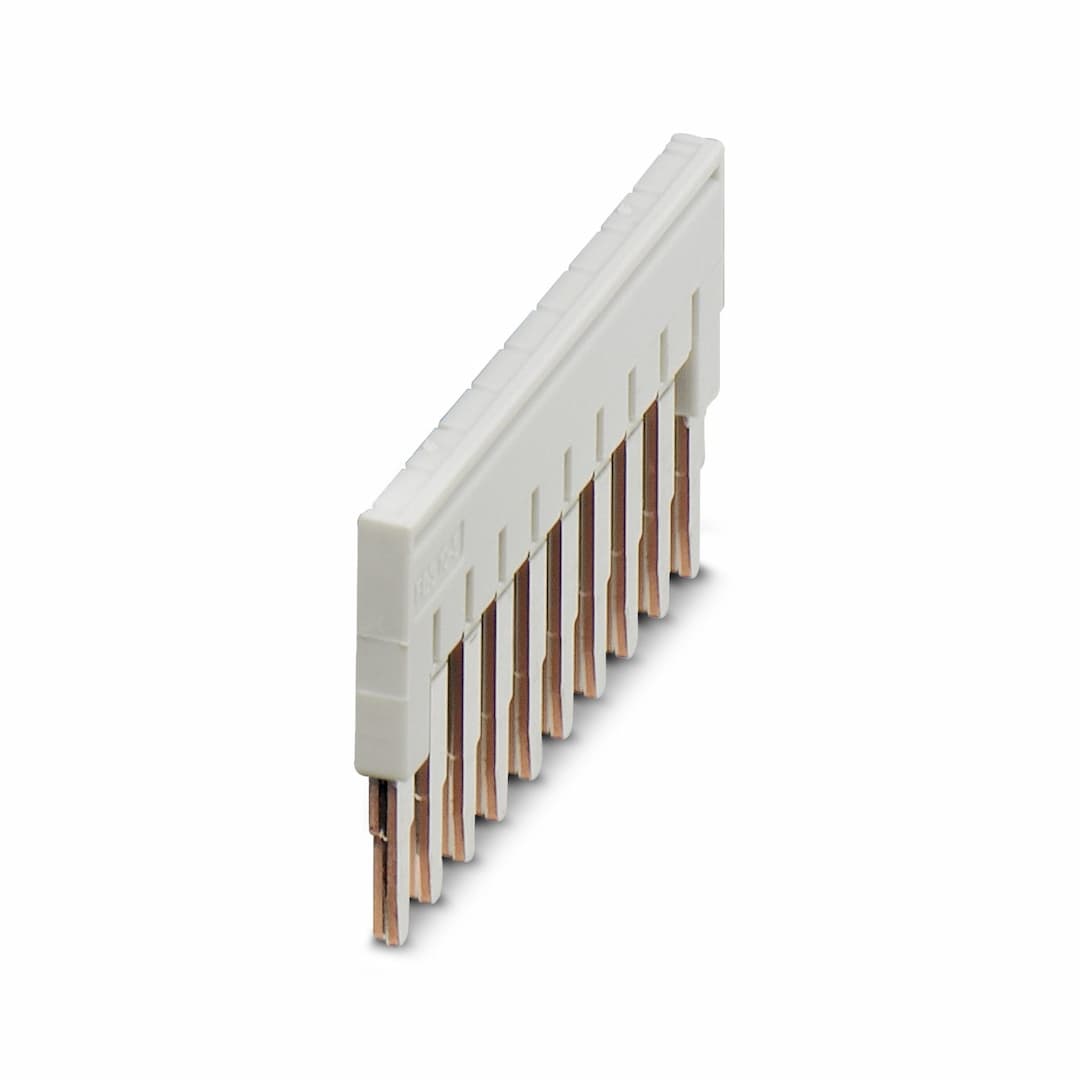

FBS 10-5 GY
Product ID:21467
Updated: 2026/7/29
Key Features
- 1Simple push-in design saves time and effort.
- 2Handles up to 24 A of current, suitable for various applications.
- 3Made from copper with a flammability rating of V0 and insulating material PA.
- 4Compatible with the CLIPLINE complete system, bridging up to 50 terminal blocks.
- 5Compliant with China RoHS, ensuring no hazardous substances above threshold values.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 10 |
| Pitch | 5.2 mm | Article revision | 05 |
| Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Pitch | 5.2 mm | Color | gray (RAL 7042) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
